All Geared Radial Drill BR40AA

DRILL

Model No

BR-40AA

Get A Quote

Technical Specifications

Model		BR40AA
Drilling In M.S.	40	Max/Min. Dist. Spindle nose to base	950/250
Drilling In C.I.	45	Max. Drilling Radius	1020
Tapping In M.S.	25	Machine Measu. (LXBXH)	1200x780x2100
Boring Is M.S.	75	Diameter Of Column	180
Spindle Hole Taper	MT-4	Work Table	300x300x385
Spindle Travel	250	Coolant Tank	640x290x130
Spindle Speeds (RPMx Steps)	9-70-1225	Drill-head Motor	1.5HP/960rpm
Diameter Of RAM	78	Elevating Motort	1 HP/1440rpm
Spindle Auto feed Ranges	0.05 & 0.09	Lifting Motor V-belt	B-25/B-26

*Specifications are subject to changed without prior notice.

Features

Column, Arm, Work Head & Gears are made out of Closed Grain.
Parts Properly Balanced.
Prior Assembling of Main Gear & Pulley Parts Finished on imported Grinding Machine.
All moving parts Finished to close Tolerance.
Spindle Ram is made out of Alloy Steel.
Main Spindle & Pinion are Made out of EN Forged Steel.

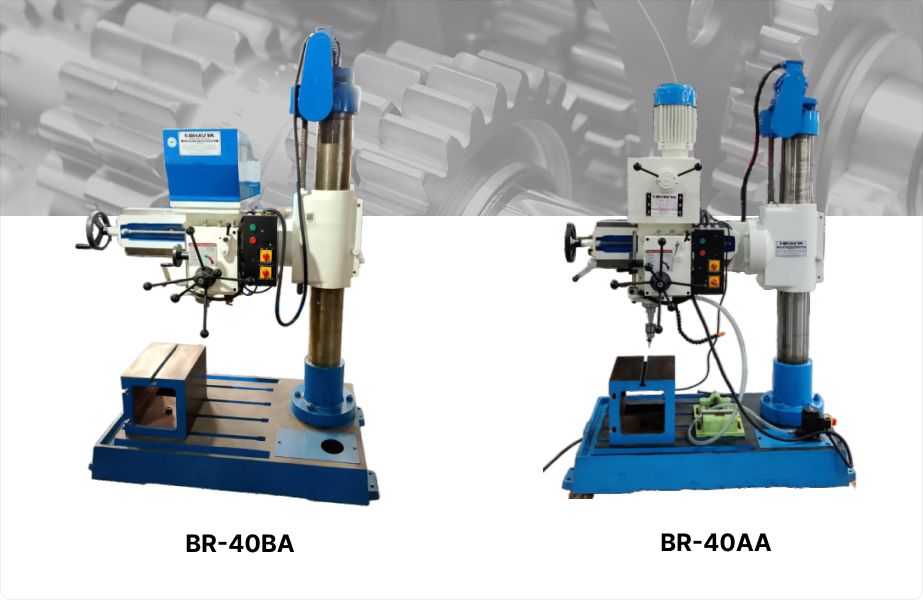

Photo Gallery

BR-40AA

Videos

BR 40AA Radial Drill Machine
