Aluminum Profile Cutting Machine

Profile Cutting

Model No

AL 455P
AL 505P
AL CNC 455P
AL CNC 505P

Get A Quote

Technical Specifications

Product Overview

Aluminum profile cutting machine integrates four key advantages: automation, intelligence, simple maintenance, and workpiece protection. It balances processing accuracy, production efficiency, equipment durability, and finished product appearance. It is suitable for various materials such as aluminum profiles, aluminum tubes and copper tubes. It is preferred cutting equipment for hardware processing, door and window factories, and the deep processing of aluminum materials.

MODEL	AL-455P	AL-505P	AL CNC 455P	AL CNC 505P
Cutting angle	90° & 45°	90° & 45°	90°	90°
Maximum sawing height	120mm	130mm	125mm	150mm
Maximum sawing width	200mm	300mm	270mm	450mm
feeding stroke	Manual	Manual	500mm	500mm
Spindle speed	2800-3000RPM	2800-3000RPM	2800-3000 RPM	2800-3000RPM
Applicable saw blade	Φ305-455mm	Φ455-505mm	Φ305-455mm	Φ455-505mm
Main motor power	4kw	4kw	5.5kw	5.5kw
Cutting Speed	10-15 cycles/min	10-15 cycles/min	0.85kw	1 kw
Required air pressure	7kg/cm	7kg/cm	4-6Kg/cm²	6-8Kg/cm²
Machine Dimensions	750×850×1200mm	900x1000×1500mm	2100x1000x1700mm	2300x1200x1700mm
Machine-Weight	250KG	350KG	600kg	700kg

*Specifications are subject to changed without prior notice.

Photo Gallery

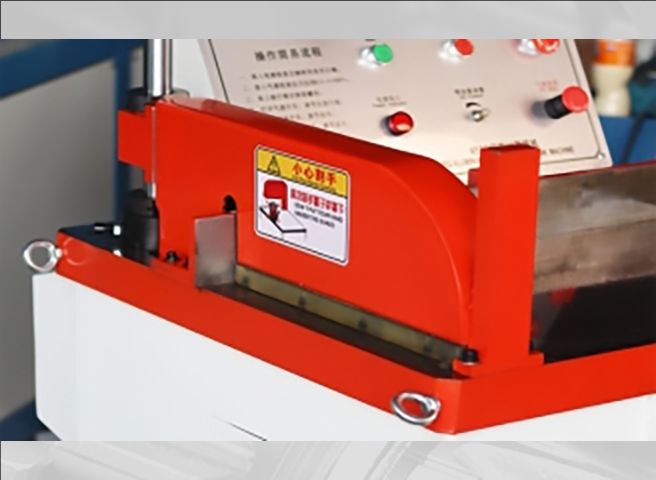

Automatic Material Holding Design, Saving Time and Labour

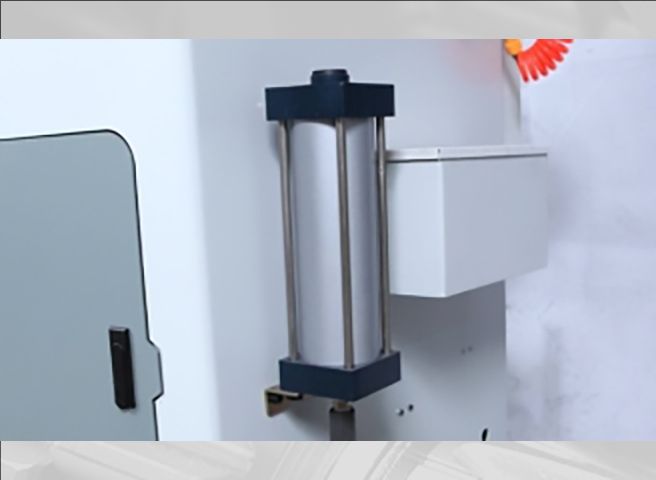

Sychronous Automatic Oil Spray Cooling System

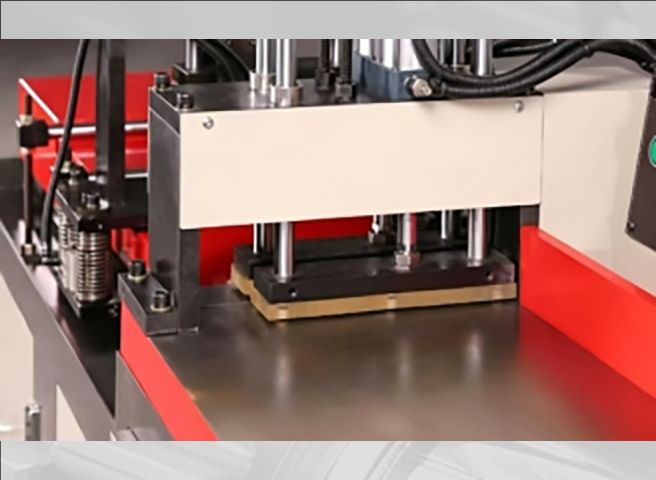

Smooth Feeding Without Deviation

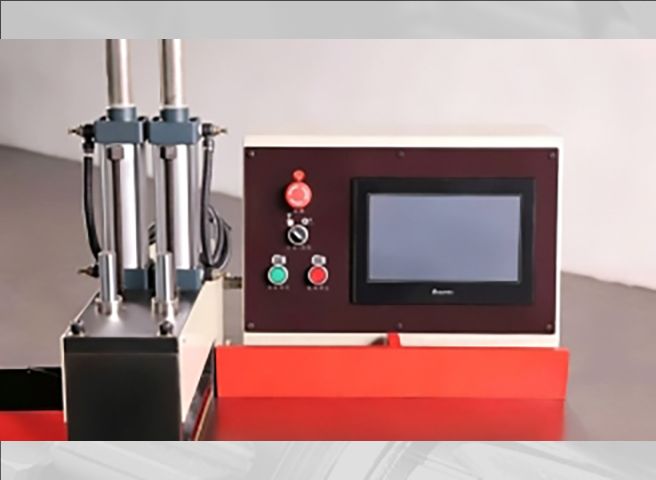

Intelligent Fault Self-Detection, Zero Maintanance Difficulty
