Board One Fiber Laser Cutting Machine

Board One Fiber Laser Cutting Machine
6020 Series

Model No

  • 6020 Series
  • 6022 Series
  • 3015 Series

Technical Specifications

Model BDC-3015 BDC-4020 BDC-6020 BDC-6025
Cutting Range 3000 × 1500 mm 4000 × 2000 mm 6000 × 2000 mm 6000 × 2500 mm
Pipe Cutting Length 6000 mm 6000 mm 6000 mm 6000 mm
Chuck Diameter 220 / 320 mm 220 / 320 mm 220 / 320 mm 220 / 320 mm
Laser Power 300 W – 2000 W 300 W – 2000 W 300 W – 2000 W 300 W – 2000 W
Max. Positioning Acceleration 10 m/s² 10 m/s² 10 m/s² 10 m/s²
Positioning Accuracy ±0.02 mm/m ±0.02 mm/m ±0.02 mm/m ±0.02 mm/m
Reposition Accuracy ±0.03 mm ±0.03 mm ±0.03 mm ±0.03 mm

*Specifications are subject to changed without prior notice.

Features

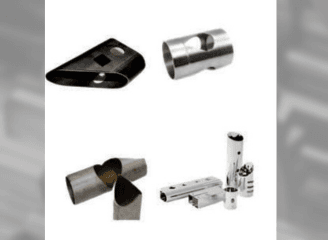

  • It can cut multiple intersecting line holes with different direc tions and diameters on the main pipe
  • It can cut the oblique section end face at the end of the pipe
  • It can cut the intersection line end of branch pipe intersecting with annular main pipe
  • It can cut square hole, waist hole and round hole on round pipe The steel pipe can be cut off
  • It can cut various graphics on the surface of square pipe
  • It can cut steel plates of different specifications
  • It can cut and cut holes on the farming box

Bhavya Machine Tools – Board One Fiber Laser Cutting Machine

Bhavya Machine Tools offers the Board One Fiber Laser Cutting Machine, designed for high-precision sheet and pipe cutting applications. Built with advanced laser technology, this machine delivers exceptional accuracy, speed, and efficiency, making it ideal for metal fabrication, automotive, and engineering industries.

The Board One Fiber Laser Cutting Machine is available in four versatile models — BDC-3015, BDC-4020, BDC-6020, and BDC-6025 — each engineered to suit diverse production requirements. These models offer cutting ranges of 3000×1500 mm, 4000×2000 mm, 6000×2000 mm, and 6000×2500 mm respectively. All models support a pipe cutting length of 6000 mm with chuck diameters of 220 / 320 mm, ensuring flexibility in handling various material dimensions.

Equipped with laser power options from 300 W to 2000 W, the machine guarantees efficient performance across different material thicknesses. It features a maximum positioning acceleration of 10 m/s², positioning accuracy of ±0.02 mm/m, and reposition accuracy of ±0.03 mm, ensuring precise and repeatable cutting results.

With a strong focus on innovation, durability, and precision engineering, Bhavya Machine Tools continues to be a trusted name in the global market for reliable fiber laser cutting solutions that meet modern manufacturing demands.
