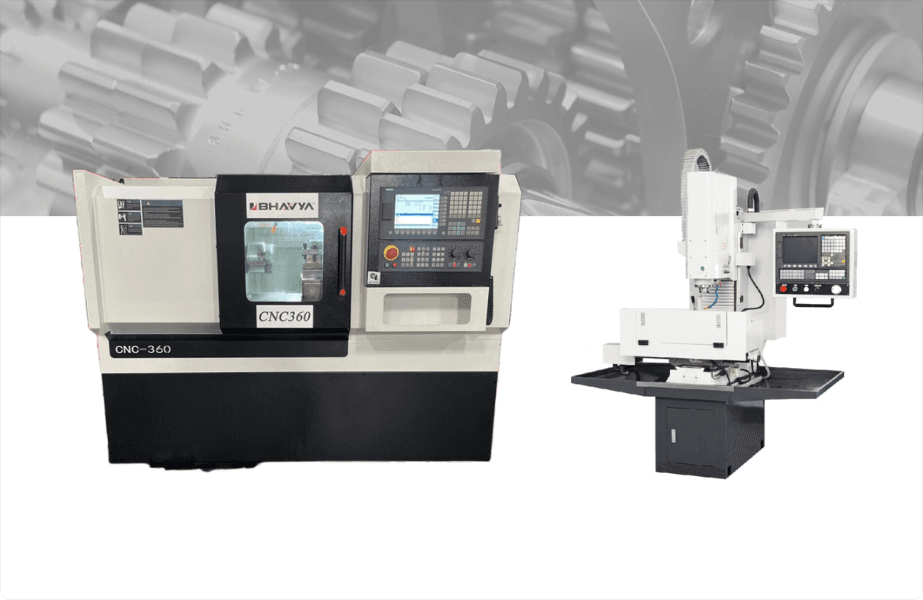

Cnc Lathe & Milling

Lathe & Milling

Model No

CNC360
XK7124/XK7124A

Get A Quote

Technical Specifications

MODEL	CNC360	XK7124/XK7124A
Maximum Swing Over Bed	Ø275mm	430mm (Optional: 530mm)
Maximum Swing Over Solid	Ø200mm	280mm
Maximum Swing Over Slide	Ø120mm	400mm
Machining Length with Hydraulic Chuck	270mm	60–460mm
Spindle Taper Hole	Ø48mm	297mm
Spindle Type	A2-5	16×3×60 mm
Spindle Speed Range	1800rpm	800–2400 rpm
Spindle Shift Mode	Inverter	60Kg
Main Motor Power	4KW	1.5kw (Frequency Inverter)
Chuck Type	Hydraulic Solid (Taiwan)	BT30
Chuck Size	160mm	4000 r/min
Rapid Traverse Speed on X/Z Axis	8/10 m/min	Manually / Pneumatically
Servo Motor Torque on X/Z Axis	4/6 Nm	0.04 mm
X / Z Axis Travel	280/390mm	0.02 mm
Guide Way Type	LM Guide	0–2000 mm/min
Turret Type	4 Station Electric Tool Post	6 m/min
Turning Tools / Boring Bar Size	20mm × 20mm × Ø20mm	1/1/1 KW
Tail Stock Type	Manual Tail Stock	0.001 mm
Tail Stock Sleeve Diameter / Travel	Ø54 / 150mm	Ø60 × 175mm
Tail Stock Sleeve Taper	MT-4	3.5 KG
Weight (Approx)	1200 KG	900 KG
Dimension (L×W×H)	1560 × 1130 × 1550mm	1900 × 1620 × 2280mm

*Specifications are subject to changed without prior notice.

Accessories

Standard

GSK/SIEMENS Controller System
Manual Chuck
Manual Tail Stock
Auto lubricating System
Working lamp
Coolant System

Optional

Hydraulic Chuck
Hydraulic tail Stock
Auto Lubrication System
