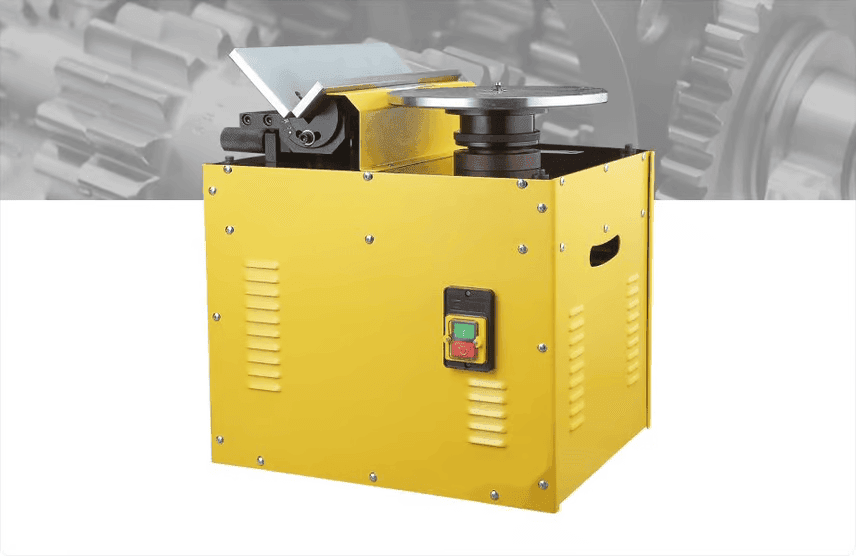

Complex Chamfer (R800B)

CHAMFER

Model No

R800B

Get A Quote

Technical Specifications

Model	R800B
Chamfering Height	0-3 mm (Straight), 0-2.5 mm (Curved)
Chamfering Angle	15° ~ 45° (Straight), 45° (Curved)
Power	380V / 750W
Speed	8500 rpm (Straight), 12000 rpm (Curved)
Dimension	56 x 44 x 69 cm
Weight	75 kg

The machine adopt Swedish SKF bearing and imported digital cuttings.

*Specifications are subject to changed without prior notice.

Features

It's suitable for reqular and irreqular parts of mechanism or mould. The angle of straight line part can be adjust from 15 degree to 45 degree.
It's easy, quick to change the cutter, no need to clamp,easy operate perfect chamfering,easy adjust, and economic, suitable for irreqular parts of mechanisms and mould.
The angle of straight line part can be adjust from 15 degree to 45 degree. It can instead the CNC maching center and general-purpose machine tools, which can not chamfer. It is convient, fast and accurate and the best choice for chamfering.
