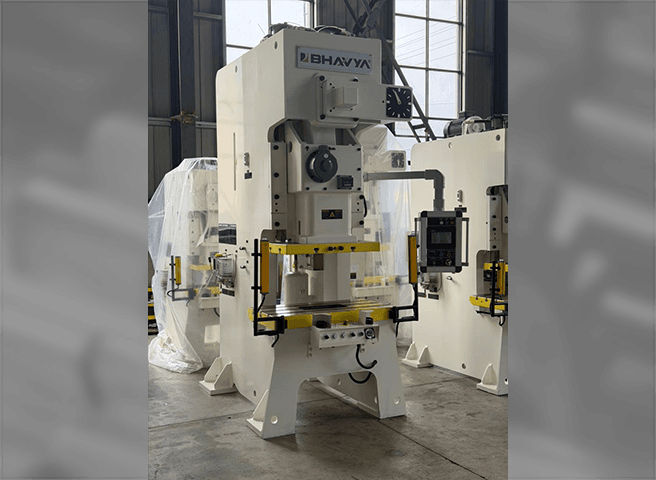

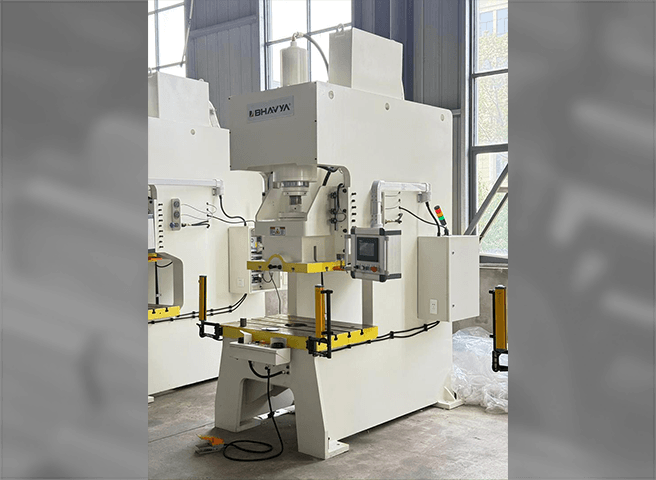

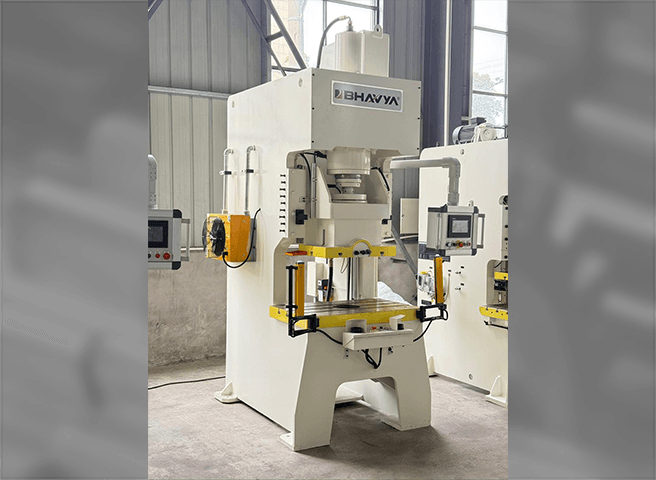

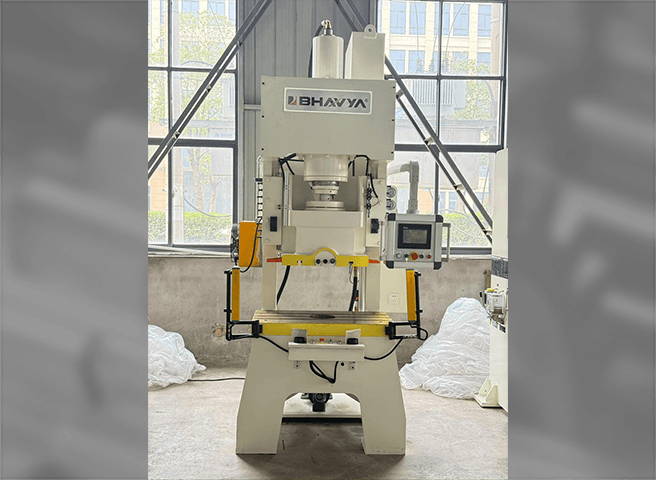

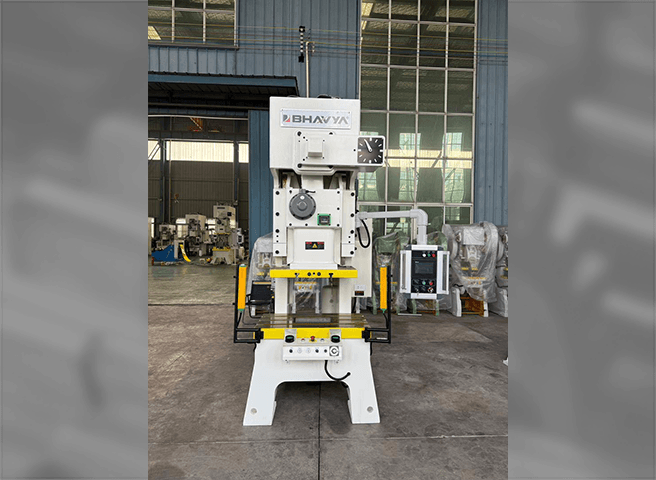

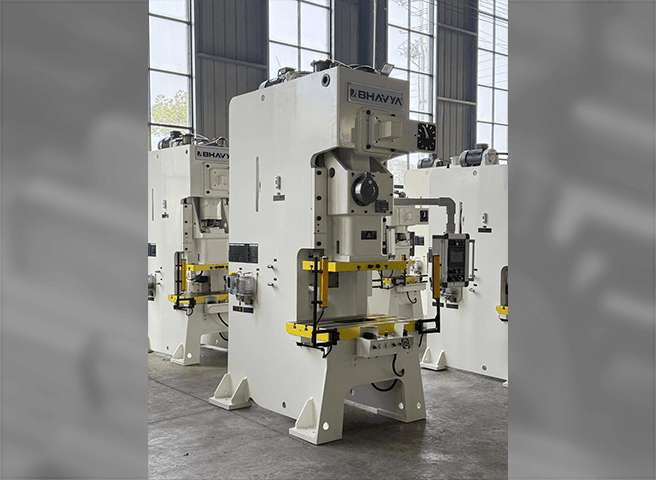

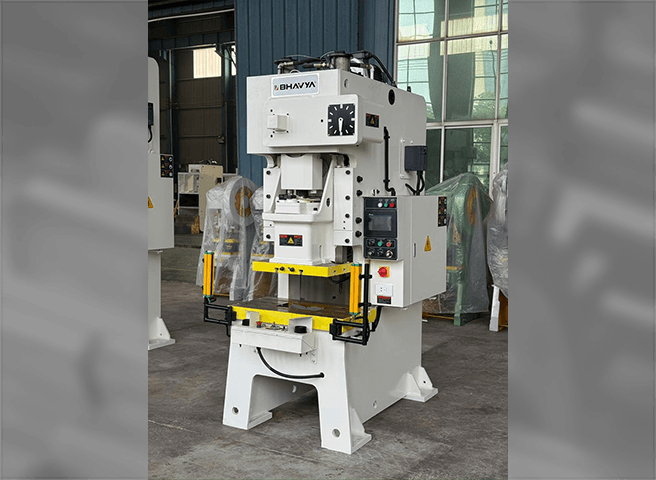

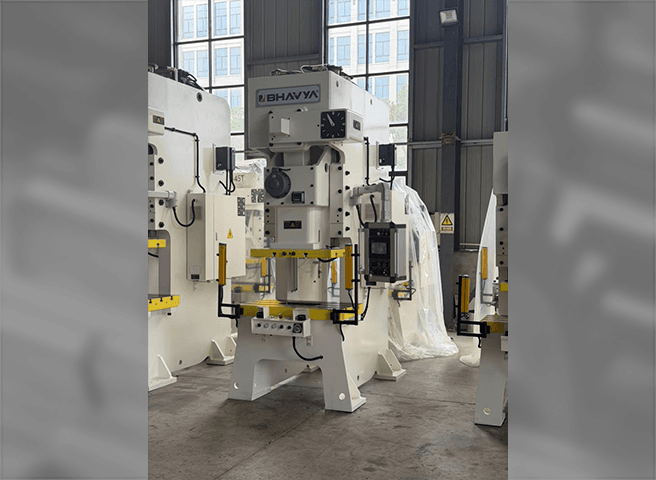

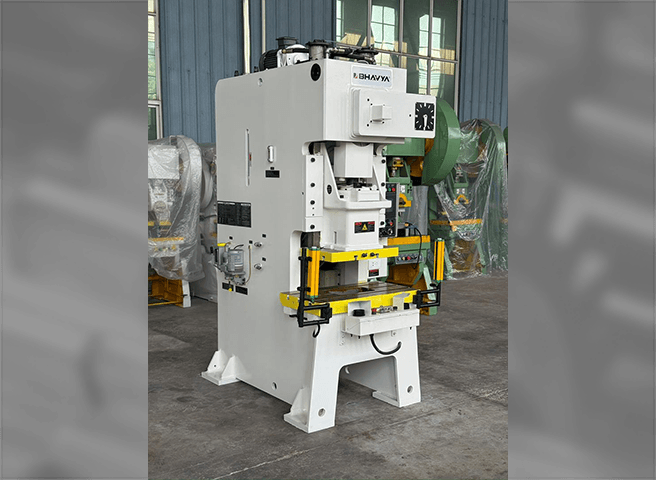

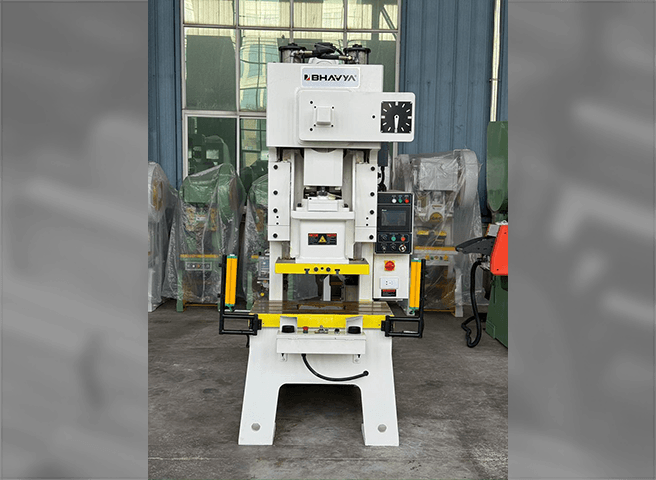

Cross Shaft Power Press Machine (APA Series)

POWER PRESS

Technical Specifications

MODEL	UNIT	APA-25	APA-45	APA-63	APA-80	APA-110	APA-125	APA-160	APA-200	APA-260	APA-315	APA-400
Model		V	V	V	V	V	V	V	V	V	V	V
Capacity	Ton	25	45	63	80	110	125	160	200	260	315	400
Rated Tonnage Point	mm	3.2	3.2	4	4	6	6	6	6	7	8	8
Speed Changing	s.p.m	60-140	40-100	35-90	35-80	30-60	30-60	20-50	20-50	20-40	20-40	20-40
Stable Speed	s.p.m	110	75	65	65	50	50	35	35	30	30	30
Stroke	mm	60	80	120	150	180	180	200	200	250	250	250
Die Height	mm	200	250	310	340	360	360	460	460	500	500	550
Slide Adjustment	mm	50	60	75	80	80	80	100	110	120	120	130
Slide Area	mm	300x220x50	400x300x60	500x360x70	560x420x70	650x470x80	650x470x80	700x550x90	850x650x90	950x700x100	1250x750x100	1350x800x100
Bolster Area	mm	680x300x70	850x440x80	900x500x80	1000x550x90	1150x600x110	1150x600x110	1250x800x140	1400x820x160	1500x840x180	1600x860x190	1650x900x200
Shank Hole	mm	ɸ38.1	ɸ38.1	ɸ50	ɸ50	ɸ50	ɸ50	ɸ65	ɸ65	ɸ65	ɸ65	ɸ65
Main Motor	kw	3.7	55	5.5	7.5	11	11	15	18.5	22	30	37
Slide Adjust Device	HP		Manual Operation				Manual operation				Manual operation
Air Pressure	kg/cm2	6	6	6	6	6	6	6	6	6	6	6
Presses Precision			Gb (JIS)1 Class				GB(JIS)1class				GB(JIS)1class
Presses Dimension	mm	1280x850x2200	1600x950x2500	1600x1000x2800	1800x1180x2800	1900x1300x3200	1900x1300x3200	2300x1400x3800	2615x1690x4075	2780x1850x4470	2910x 1950x4500	3180x2150x5025
Die Cushion Capacity	Ton	-	2.3	3.6	3.6	6.3	6.3	10	14	14	14	14
Stroke	mm	-	50	70	70	80	80	80	100	100	100	100
Die Cushion Effective Area	mm2	-	300x230	350x300	450x310	500x350	500x350	650x420	710x480	810x480	710x480	710x480

*Specifications are subject to changed without prior notice.

Rigid frame with less deflection.
High accuracy meets the QMS 1st level.
High torque, low noise wet clutch and brake.
Forced Lubrication system with default monitor ensures the operation reliability.
High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
Keep the transmission center and machine center in uniformity guarantee the precision of pressing.
User-friendly design and all-function electric control system enable the accessories to attach easily.
With high rigidity design in machine frame, the machine body is welded by quality steel and treated by tension elimination improve stability and reliability of precision for the machine.
