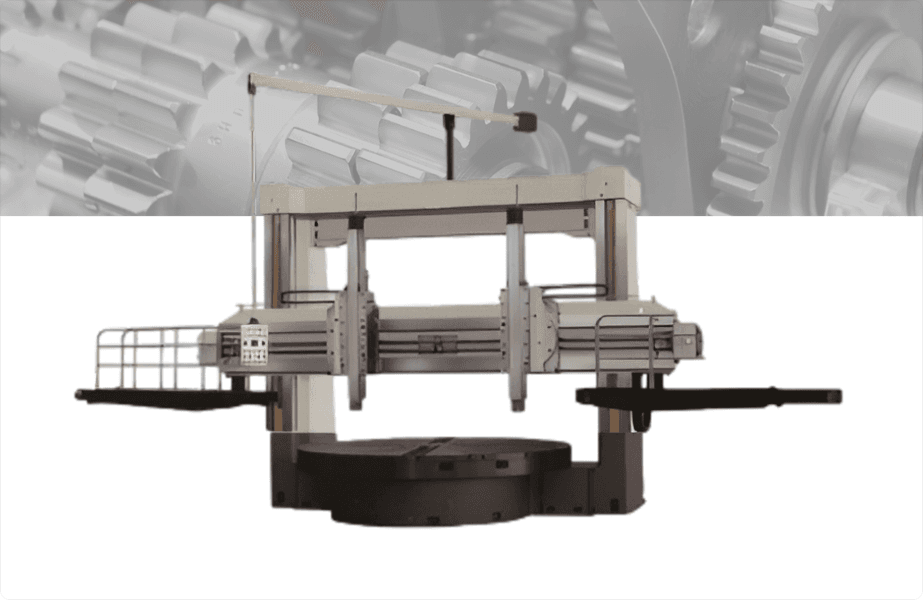

Double Column Vertical Lathe

LATHE

Model No

DVT25
DVT32
DVT35
DVT40
DVT50
DVT63

Get A Quote

Technical Specifications

PARTICULARS / MODEL	UNIT	DVT25	DVT32	DVT35	DVT40	DVT50	DVT63
Max. cutting diameter	mm	2500	3200	3500	4000	5000	6300
Max. cutting height	mm	1600/2000/2500	1600/2000/2500	1600/2000	1600/2000/2500	2000/2500/3150	3150/4000
Worktable diameter	mm	2250	2830	2830	2830/3200/3600	4000/4500	4500/5000/5700
Max. loading weight	t	10/16/20	10/16/20	20	20/32/50	32/50	50/100
Worktable max. torque	kn.m	63	63	63	63	70	100
Worktable speed range	RPM	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable step	steps	16	16	16	16	16	16
Right tool post cutting force	kn	35	35	35	35	35/50	50/80
Left tool post cutting force	kn	28	28	28	28	28/40	40/70
Tool post horizontal travel	mm	1400	1700	1900	2150	2765	3450
Tool post vertical travel	mm	1000/1250	1000/1250	1000/1250	1000/1400	1250/1400/1600	1600/2000
Crossbeam travel	mm	1400	1400	1400	1600	1600	1600/2000
Main motor	kw	AC55	AC55	AC55	AC55	AC55/75	AC75/90/110
Machine weight (Approx)	t	32/34/36	39/42	40/43	43/45/48	60/65/70	118/127/178
Overall dimension (L×W×H)	mm	5180×4700×4800	6000×4860×5000	6400×5050×5200	6900×5200×5700	9200×5800×5800	11500×7500×9300

*Specifications are subject to changed without prior notice.

Features

Advanced modular design, universal products, mature technology, stable accuracy and reliable quality.
Great castings are made by our own foundry, and through heat aging treatment.
Hardened guideway by extra-frequency induction machine about HRC40. Sliding guideway combined with rollers on the cross rail.
PLC control made by OMRON Japan. Good layout and cabling in cabinet, special careful selected components for super reliability.
eparate hydraulic station, easy to set up, daily maintenance and repair.
DRO and scales are standard.
Grounded gears in the gearbox to ensure high precision, low noise and long lifetime.
Two kinds of table guideway is available, i.e. dynamic static pressure and pure static pressure.
