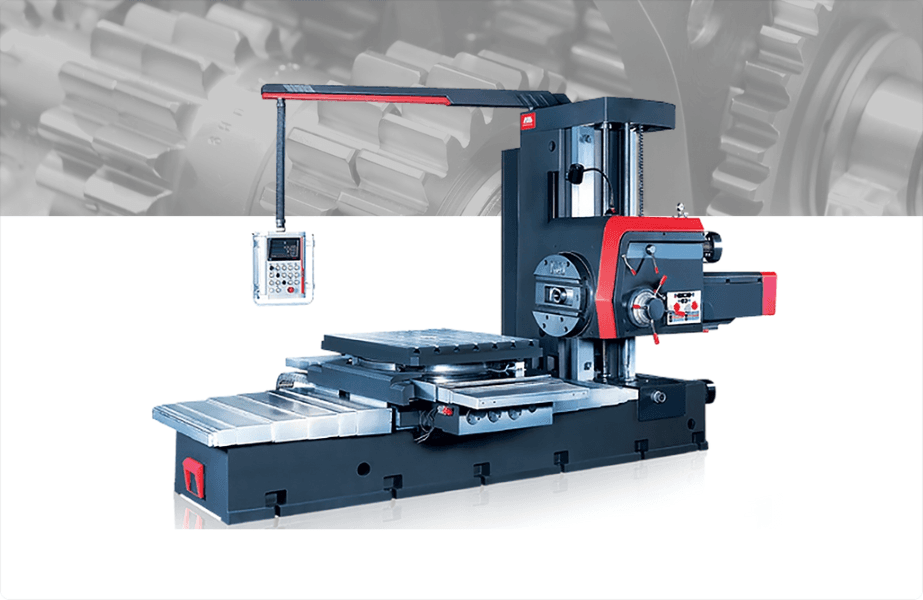

Dro Horizontal Boring and Milling Machine

MILLING

Model No

HBM110
HBM110A
HBM110B
HBM130
HBM130A

Get A Quote

Technical Specifications

PARTICULARS / MODEL	UNIT	HBM110	HBM110A	HBM110B	HBM130	HBM130A
Spindle diameter	mm	110			130
Spindle Taper		Morse No6(Optional ISO7 : 24No50)			Metric 80(Optional ISO7 : 24No50)
Max. spindle Torque	N.m	1225			3116
Max. spindle thrust	N	12250			31360
Number of spindle speed		22			24
Range of spindle speed	r/min	8-1000			4-800
Power of main motor	KW	7.5			15
Max. facing head torque	N.m	1960			4900
Facing head diameter	mm	600			750
Range of facing head speed	r/min	4-200			2.5-125
Number of facing head speed		18			18
Table working surface (LW)	mm	1100x960	1100x960	1250x1100	1600x1400	1800x1600
Max. permissible load on table	kg	2500	2500	3000	8000	10000
T-slot	mm	22			28	28
Number of T-slot	-	7			9	11
X-axis travel	mm	1250			1600
Y-axis travel	mm	900	900	1600	1600	2000
Z-axis travel	mm	900	1400	1200	1400	1800
W-axis travel (Spindle travel)	mm	600			900
U-axis travel (Facing slide travel)	mm	180			250
B-axis worktable rotary		360			360
Distance between spindle axis and table surface	mm	0-900			0-1400	0-1800
Rapid travel (X/Y/Z/W)	mm/min	2500			2500
Range of axes speed per spindle revolution (X/Y/Z/W)	mm/rev	0.04-6/0.01-1.88			0.05-8/0.01-2
Measurement system reading precision (X/Y/Ζ)	mm	0.005			0.005
B-axis reading precision (optional)		0.001			0.001
Overall dimensions (LWH)	mm	4910x2454x2750	4910x2870x2750	5120x3380x3100	6995x3647x3442	7030x4665x3800
Weight of machine (Approx)	kg	13000	14500	18000	24500	29300

*Specifications are subject to changed without prior notice.

Features

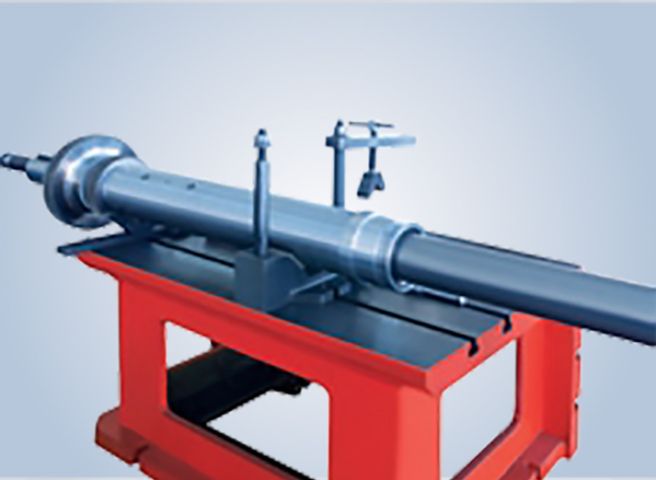

High Quality Spindle

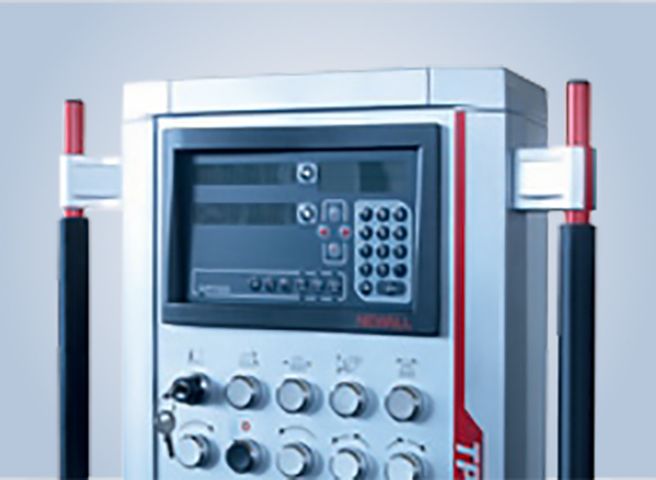

Use Friendly Layout

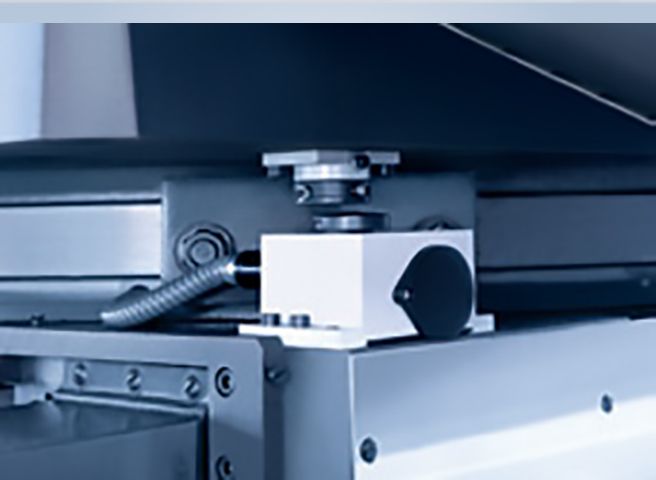

Accurate & Stable optional Aiming

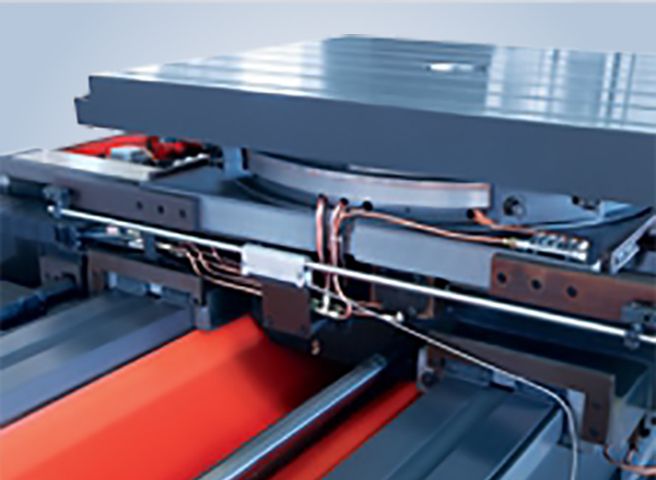

Electro-hydraulic Interlock

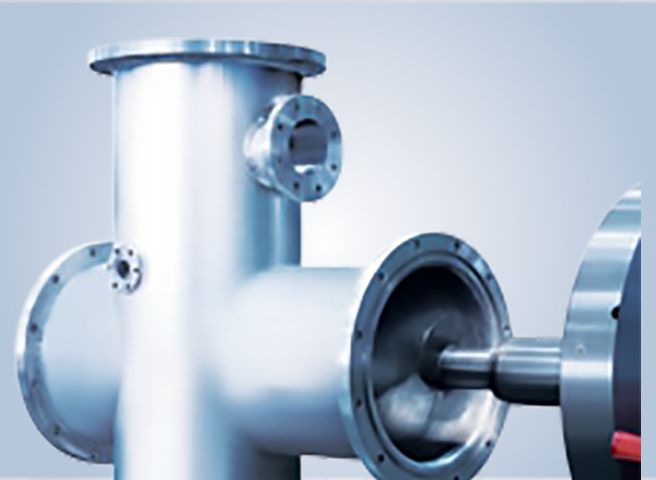

Workpiece Sample

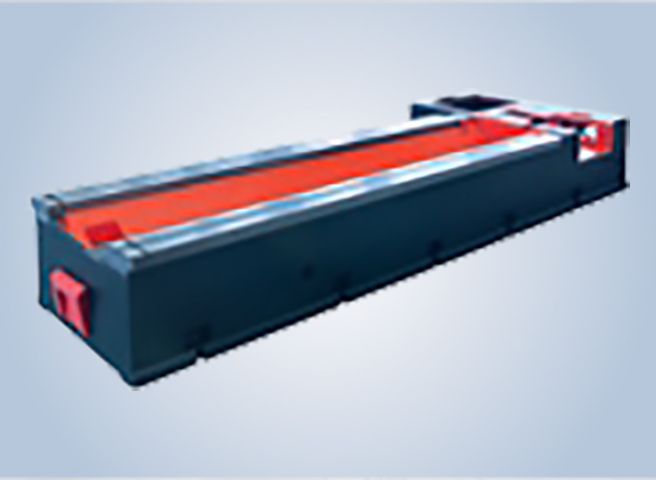

Bed

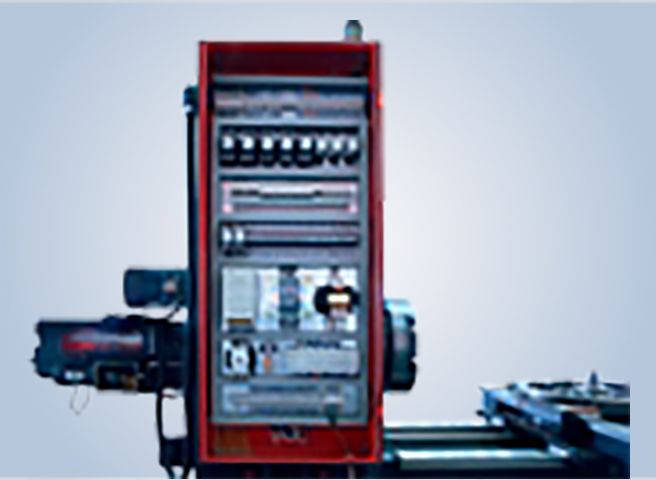

Control System

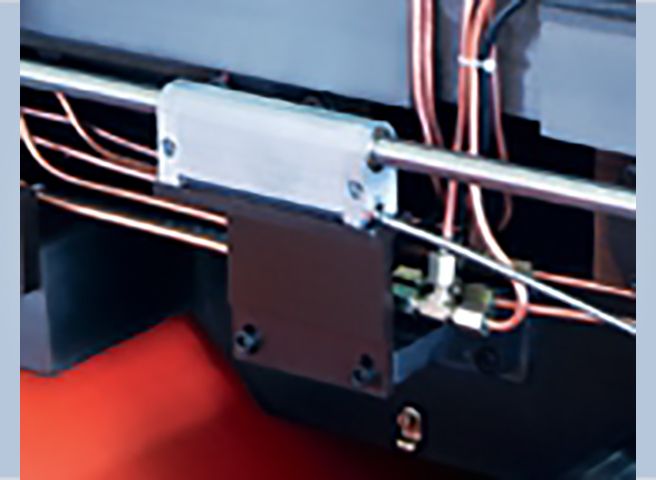

Internal Design

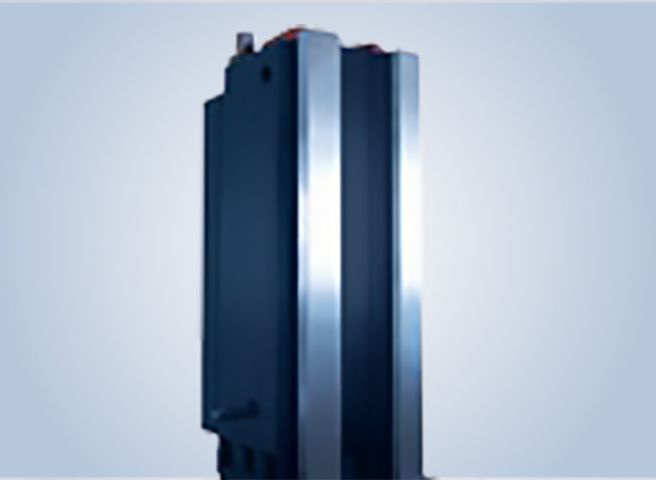

Column

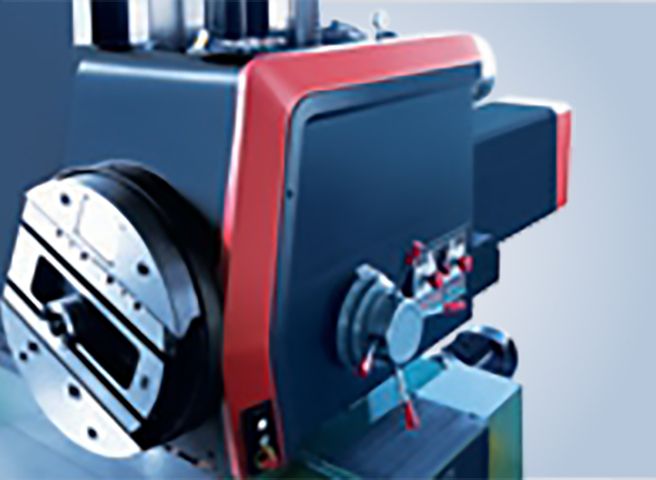

Protective Enclosure

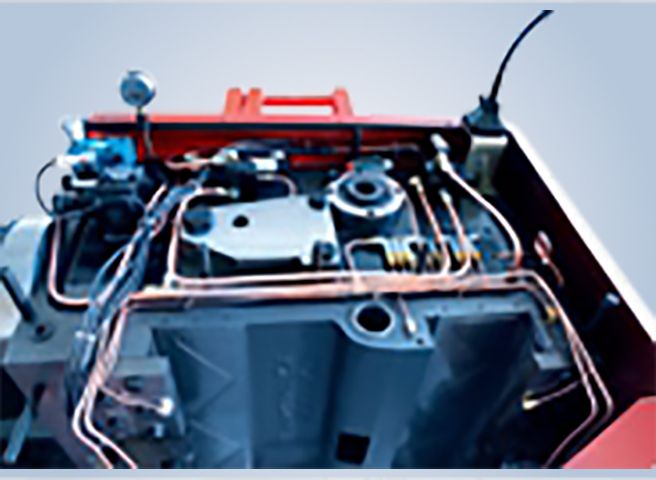

Hydraulic System

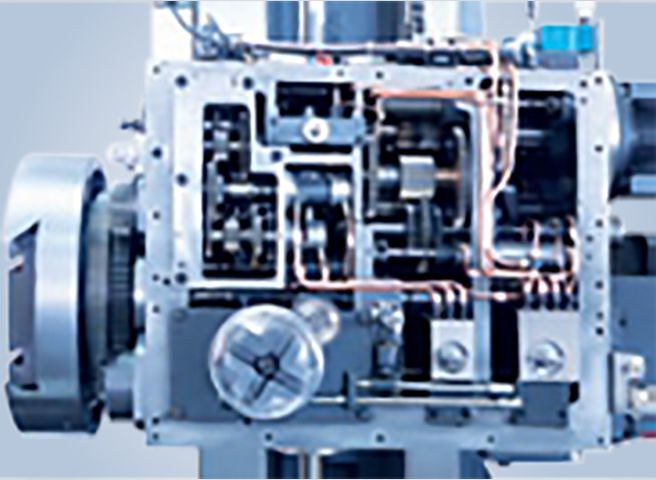

Headstock
