Flat Bed CNC Lathe Machine (40 - 60)

LATHE

Model No

CNC40
CNC50
CNC60

Get A Quote

Technical Specifications

Technical Specifications

TECHNICAL PARAMETER	UNIT	CNC40	CNC50	CNC60
Max. swing dia. over bed	mm	400	500	600
Max. swing dia. over slide	mm	240	250	395
Maximum turning diameter (disc)	mm	400	500	600
center distance	mm	550/750	1000/1500/2000	1000/1500/2000
Maximum turning length.	mm	420/620	850/1350/1850	850/1350/1850
Spindle nose		A2-6/A2-8	A2-8/A2-11	A2-8/A2-11
Spindle bore	ф/mm	48/82	82/130	82/130
Spindle taper	ф/mm	Collect/Metric 90	Metric 90/Metric 140	Metric 90/Metric 140
Spindle speed	r/min	150-2500/150-1800	150-1800/150-800	150-1800/150-800
Spindle shift mode		Stepless speed	Stepless speed	Stepless speed
Spindle motor power	KW	5.5/75	7.5/11	7.5/11
Chuck type		Manual chuck	Manual chuck	Manual chuck
Chuck size	mm	200/250	250/320/380	250/320/380
X/Z axis rapid traverse	m/min	6/8	6/8	6/8
X/Z axis servo motor torque	Nm	4/6	X:5/7.5 Z:7.5/10/15	X:5/7.5 Z:7.5/10/15
X/Z axis travel	mm	X:280 2:550/750	X:280 Z:1000/1500/2000	X:325 Z:1000/1500/2000
Guide way type		box way	box way	box way
Tool quantity		4	4	4
Tool shank size	mm x mm	20x20	25x25	25x25
Tail stock quill dia	ф/mm	60	75	75
Tail stock quill travel	mm	100	150	150
Tail stock quill taper		MT4#	MT5#	MT5#
Tail rated power	KW	8/10	11/12/13	11/12/13
Total rated current	A	17/21	23/26/29	23/26/29
Net weight (Approx)	Kg	1900/2200	2500/3000/3500	2800/3200/3600

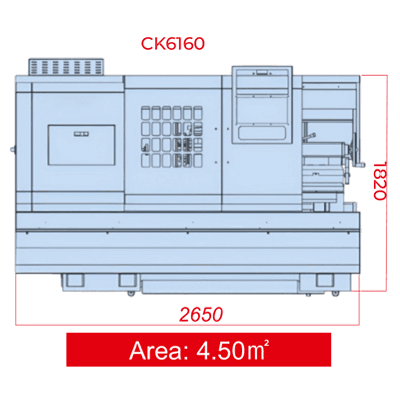

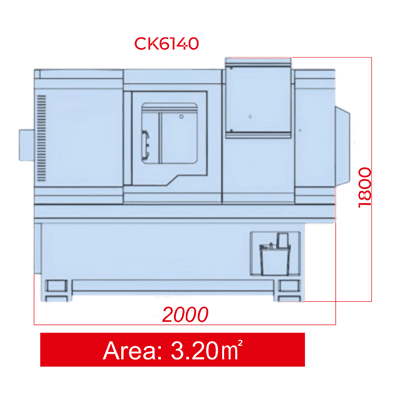

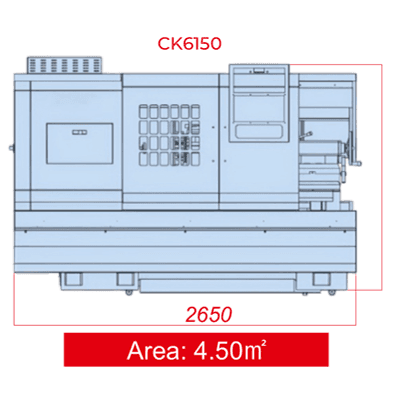

Machine dimension (LxWxH)	mm	2350x2200x1600x1800	2650/3250/3750x1700x1820	2650/3250/3750x1700x1820

	CNC40		CNC50		CNC60
Recomended processing D./L. (mm)	ɸ 210	420/620	ɸ 220	830/1350	ɸ 380	830/1350
Max. processing D. (mm)	ɸ 400	-	ɸ 500	-	ɸ 600	-
Max. bar D. through spindle (mm)	ɸ 38		ɸ 63		ɸ 63

*Specifications are subject to changed without prior notice.
