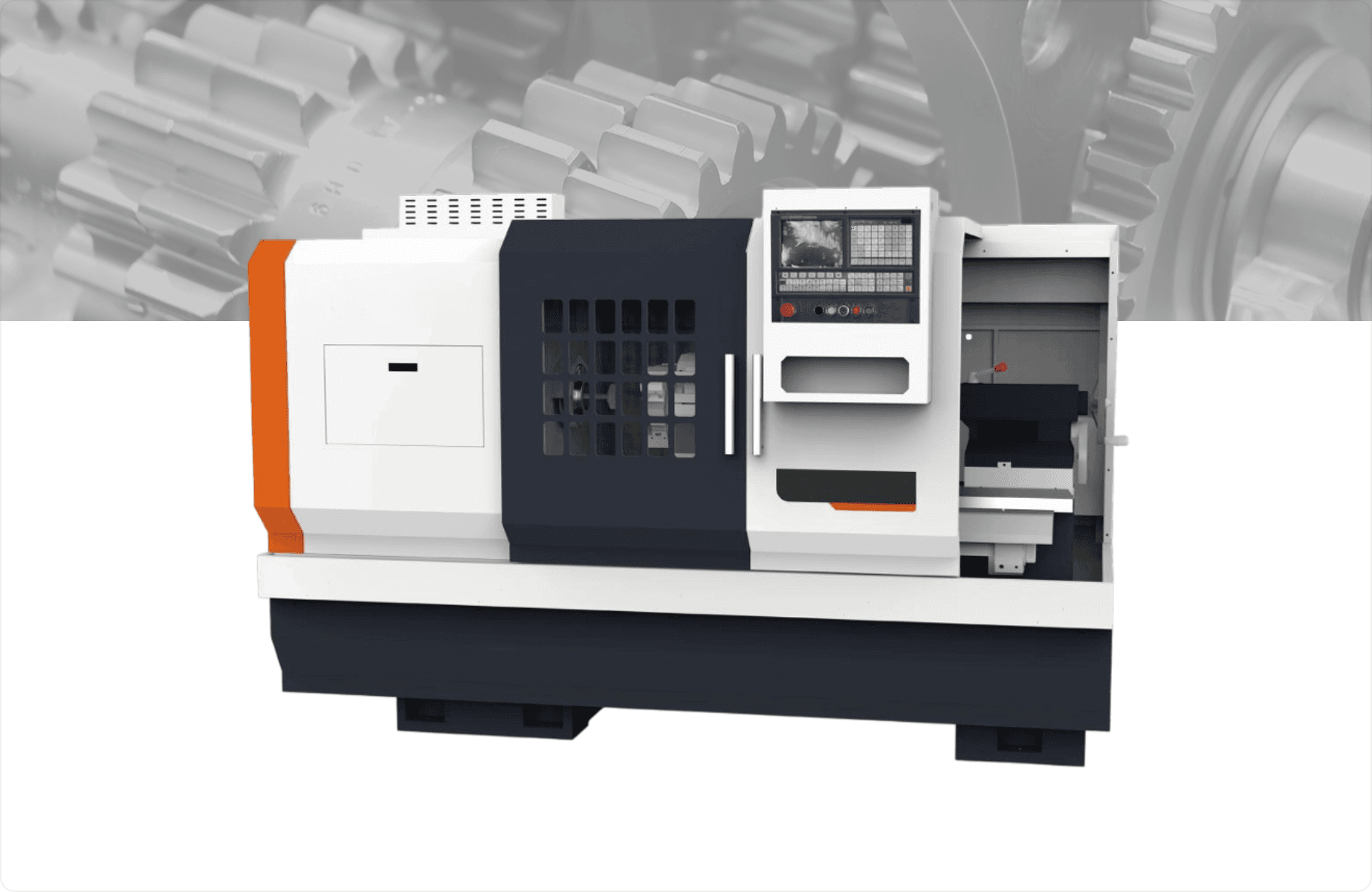

Flat Bed CNC Lathe Machine (52E - 85E)

LATHE

Model No

CNC52E
CNC65E
CNC85E

Get A Quote

Technical Specifications

Technical Specifications

TECHNICAL PARAMETER	UNIT	CNC52E	CNC65E	CNC85E
Max. swing dia. over bed	mm	530	650	850
Max. swing dia. over slide	mm	280	375	500
Maximum turning diameter (disc)	mm	520	650	850
center distance	mm	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000/4000
Maximum turning length.	mm	825/1325/1825/2825	900/1400/1900/2900	900/1400/1900/2900/3900
Spindle nose	GB59001	A2-8	C11	C11
Spindle bore	ф/mm	90	105	105
Spindle taper	r/min	Metric 100/1:20	Metric 120/1:20	Metric 120/1:20
Spindle speed		30-150,90-450,315-1600	10-85,40-350,100-850	10-85,40-350,100-850
Spindle shift mode	KW	3-step speed with manual gear shifting, stepless in step
Spindle motor power	KW	7.5	11	11
Chuck type	inch	Manual chuck	Manual chuck	Manual chuck
Chuck size	m/min	250	320	400
X/Z axis rapid traverse	m/min	6/8	4/5	4/5
X/Z axis servo motor torque	Nm	X:7.5 Z:10/15/22/22	X:10 Z:15/15/22/30	X:10 Z:15/15/22/30
X/Z axis travel	mm	X:300 Z:1000/1500/2000/3000	X:400 Z:1100/1600/2100/3100	X:450 Z:1100/1600/2100/3100/4100
Guide way type		box way	box way	box way
Tool quantity		4	4	4
Tool shank size	mmxmm	25x25	32x32	32x32
Tail stock quill dia	ф/mm	75	100	100
Tail stock quill travel	mm	150	250	250
Tail stock quill taper		MT5#	MT6#	MT6#
Tail rated power	KW	12/12/13/13	16/18/20	16/16/18/20
Total rated current	A	26/26/28/28	36/40/42	36/36/38/42
Net weight (Approx)	Kg	2900/3150/3500/4300	4400/4800/5400/6200	4800/5200/5800/6600

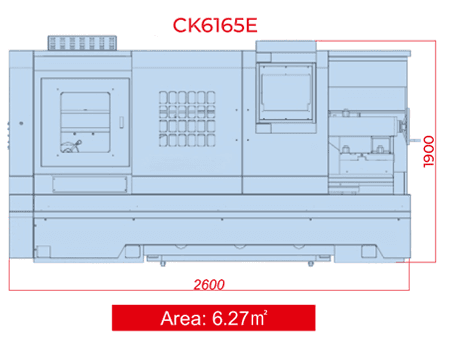

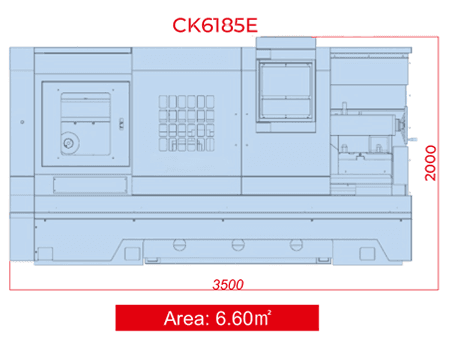

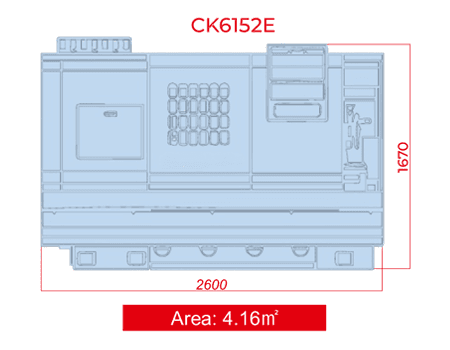

Machine dimension (LxWxH)	mm	2600/3100/3600/4800x1600x1670	3500/4000/4500/5500x1900x1900	3500/4000/4500/5500x2000x2000

		CNC52E		CNC65E		CNC85E
Recomended processing D./L. (mm)	ɸ 270	825/1325/1825/2825	ɸ 350	900/1400/1900/2900	ɸ 450	900/1400/1900/2900/3900
Max. processing D. (mm)	ɸ 520	-	ɸ 650	-	ɸ 850	-
Max. bar D. through spindle (mm)	ɸ 88		ɸ 104		ɸ 104

*Specifications are subject to changed without prior notice.
