V-Belt Drive Lathe Machine

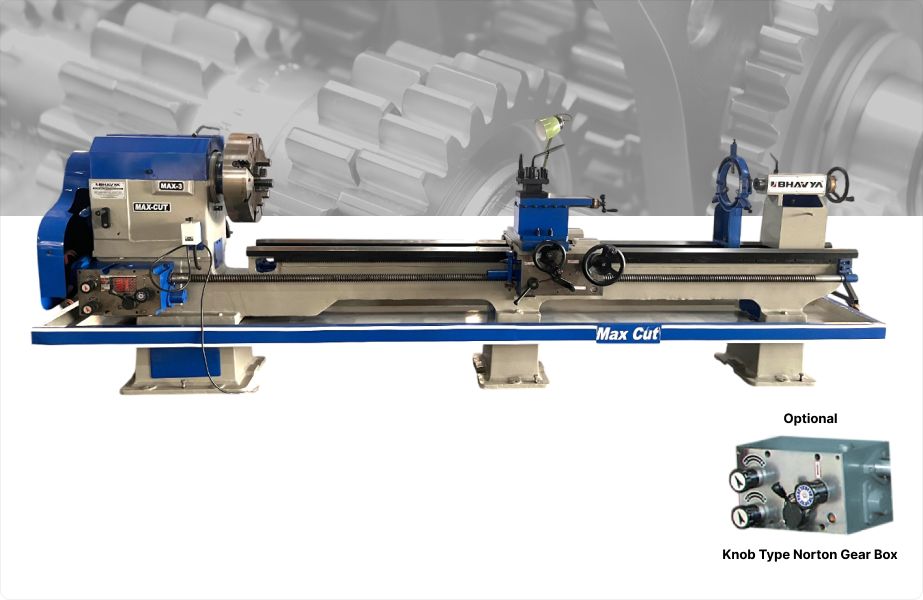

Heavy Duty Lathe (Max Series)

Heavy Duty Lathe (Max Series)

High Tensile

Casting

Head Stock

Latest Design

Bed & Spindle are

Hardened & Ground

LATHE

Model No

MAX
MAX - 1
MAX - 2
MAX - 3
MAX - 4

Get A Quote

Technical Specifications

Model	MAX	MAX-1	MAX-2	MAX-3	MAX-4
Height Of Centre (mm)	250	300	300	375	450
Max. Swing (mm)
Over Bed	500	600	600	750	900
Over Slide	300	400	400	550	700
In Gap	775	900	900	1050	1200
Spindle
Bore (mm)	52	80	80	80	100
Nose	6 ΤΡΙ	6 ΤΡΙ	6 ΤΡΙ	6 ΤΡΙ	6 ΤΡΙ
Speed-8 (R.P.M.)	30 To 475	30 To 475	30 To 475	30 To 475	30 To 475
Travel (mm)
Cross Slide	270	335	335	380	460
Top Slide	150	150	150	150	175
Other
Lead Screw TPI	4 ΤΡΙ	4 ΤΡΙ	4 ΤΡΙ	4 ΤΡΙ	4 ΤΡΙ
Tail Stock Sleeve	MT-4	MT-4	MT-4	MT-4	MT-5
Power Required (H.P.)	3	3	3	5	5

Admit Between Centers

Size	MAX	MAX-1	MAX-2	MAX-3	MAX-4
5.5'	560	560	560	560	-
7'	1000	1000	1000	1000	800
9'	1600	1600	1600	1600	1400
10'	1900	1900	1900	1900	1700
12'	2500	2500	2500	2500	2300
14'	3100	3100	3100	3100	2900
16'	3700	3700	3700	3700	3500
18'	4300	4300	4300	4300	4100
20'	-	-	4900	4900	4700
22'	-	-	5500	5500	5300
24'	-	-	6100	6100	5900

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Chuck Plate
Gear Set
Center Adaptor
Dead Centers

Dial Indicator
Square Tool Post
Tool Post Key

Optional :

Steady Rest
Follow Rest
Face Plate Electrical Fittings
True Chuck & Dog Chuck
Quick Change Tool Post Tapper Turning Attachment
Knob Type Oil Bath Norton Gear Box

Coolant Pump with Tank & Fittings Machine Lamp
Norton Gear Box
Rear Tool Post
Key way Milling Attachment
Tool Post Grinder
Plunger Type Norton Gear Box

Features

High Tensile Casting
Head Stock Latest Design
Bed & Spindle are Hardened & Ground

Photo Gallery

Max-3-9'
