V-Belt Drive Lathe Machine

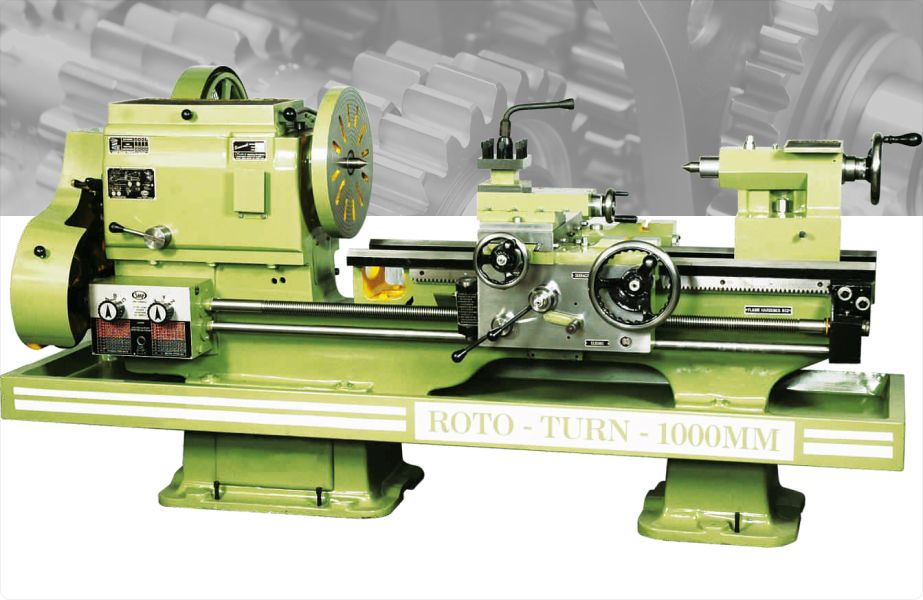

Heavy Duty Lathe (YBX Series)

Heavy Duty Lathe (YBX Series)

High Tensile

Casting

Head Stock

Latest Design

Bed & Spindle are

Hardened & Ground

SUPER LATHE

Model No

YBX
YBX - 1
YBX - 2
YBX - 3

Get A Quote

Technical Specifications

Model	YBX	YBX-1	YBX-2	YBX-3
Height Of Centre (mm)	240	300	300	375
Width Of Bed (mm)	325	325	375	375
Max. Swing (mm)
Over Bed	480	600	600	750
Over Slide	280	400	400	550
In Gap	780	900	900	900
Spindle
Brose (mm)	52	80	80	80
Nose	6 TPI	6 TPI	6 TPI	6 TPI
Speed-8(R.P.M)	30 TO 600	30 TO 600	30 TO 600	30 TO 600
Travel(mm)
Cross Slide	270	335	335	380
Top Slide	150	150	150	150
Other
Lead Screw TPI	4 TPI	4 TPI	4 TPI	4 TPI
Tail Stock Sleeve	MT-4	MT-4	MT-4	MT-4
Power Required (HP)	3	3	3	5

Admit Between Centers (in mm)

Size	YBX	YBX-1	YBX-2	YBX-3
5.5'	560	560	560	560
7'	1000	1000	1000	1000
9'	1600	1600	1600	1600
10'	1900	1900	1900	1900
12'	2500	2500	2500	2500
14'	3100	3100	3100	3100
16'	3700	3700	3700	3700
18'	4300	4300	4300	4300
20'	-	-	4900	4900
22'	-	-	5500	5500
24'	-	-	6100	6100

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Chuck Plate
Gear Set
Center Adaptor
Dead Centers

Dial Indicator
Square Tool Post
Tool Post Key

Optional :

Steady Rest
Follow Rest
Face Plate Electrical Fittings
True Chuck & Dog Chuck
Quick Change Tool Post Tapper Turning Attachment

Coolant Pump with Tank & Fittings Machine Lamp
Rear Tool Post
Key Way Milling Attachment
Tool Post Grinder

Features

High Tensile Casting
Head Stock Latest Design
Bed & Spindle are Hardened & Ground
