Hydraulic Punching Machine

Punching Machine

Model No

HPM-60
HPM-90
HPM-120
HPM-160
HPM-200

Get A Quote

Technical Specifications

PARTICULAR	HPM-60	HPM-90	HPM-120	HPM-160	HPM-200
Punching Pressure	60 TON	90 TON	120 TON	160 TON	200 TON
Material Strength Maximum	≤450	≤450	≤450	≤450	≤450
Stroke Length	80 mm	80 mm	90 mm	100 mm	110 mm
Trips Frequency	10-20	12-22	8-18	6-16	6-16
Punch Capacity (Dia.xThk.)	25x16 mm	30x20 mm	35x25 mm	38x30 mm	40x35 mm
Throat Depth	300 mm	335 mm	480 mm	535 mm	535 mm
Motor Power	5.5 KW	7.5 KW	11 KW	15 KW	18.5 KW
Machine Dimension (mm)	1400x700x1700	1600x800x1800	1800x960x1800	2350x1050x2300	2200x1050x2450

*Specifications are subject to changed without prior notice.

Accessories

Standard Accessories

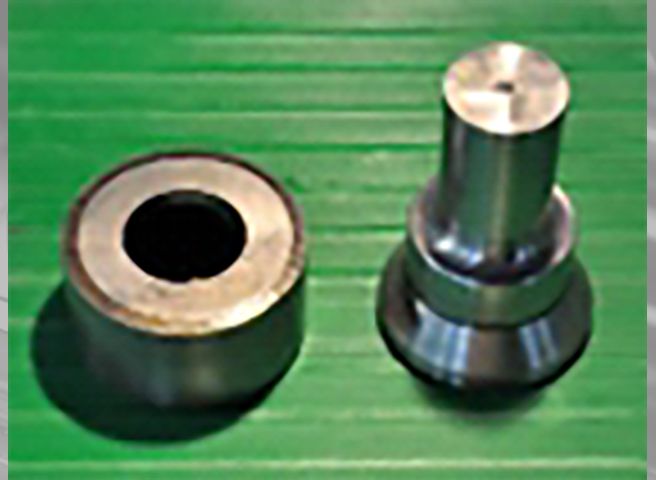

One piece round punch

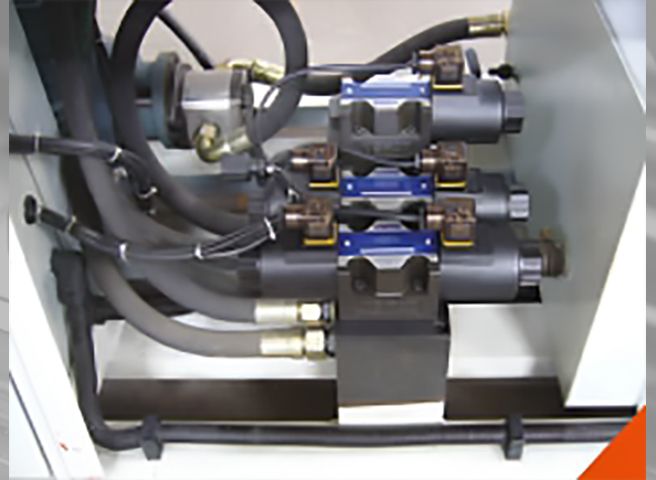

Yuken / Rexroth Valves

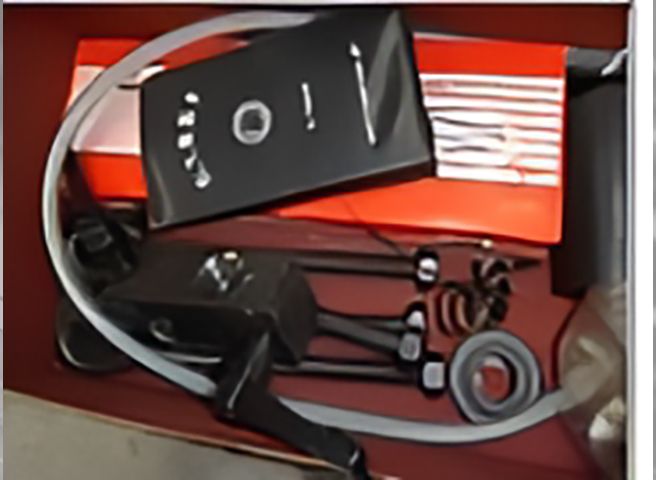

Tool Box

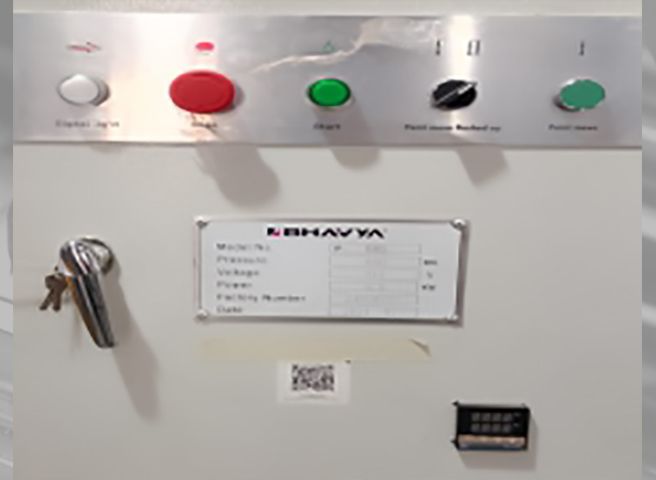

Tempreture Controller

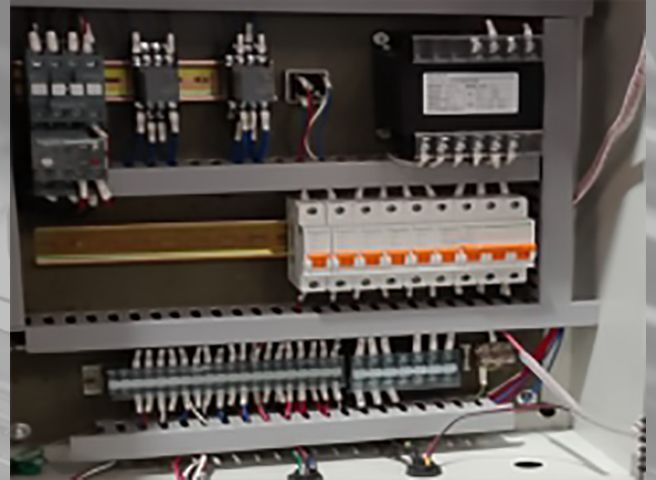

Schneider Components
