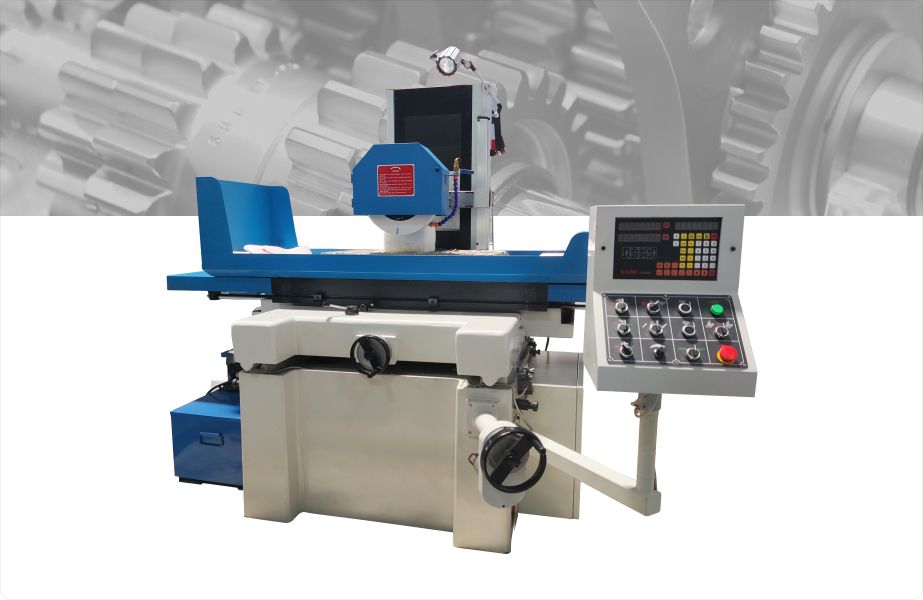

HYDRAULIC SURFACE GRINDER MACHINE (Ball Screw & Vertical Servo Motor with Reducer)

HSG8040A+ PRO

Model No

HSG5025A+ PRO
HSG6030A+ PRO
HSG8040A+ PRO

Get A Quote

Technical Specifications

No	Description	Unit	HSG8040A+ PRO
1	Size of worktable (L × W × H)	mm	800 × 400 × 405
2	Electro Magnetic chuck size	mm	800 × 400
3	Table travel	mm	820 × 440
4	Max. distance from spindle centre to worktable surface	mm	580
5	Safety load of bench (max)	kg	400
6	Main motor power	kW	5.5
7	Spindle speed	r/min	1450
8	Abrasive wheel (D × d × w)	mm	Φ350 × 32 × 127
9	Overall dimensions (L × W × H)	mm	2260 × 1790 × 1917
10	G/N weight	kg	3300 / 3000

*Specifications are subject to changed without prior notice.

Accessories

No	Accessory	Specification	Qty
1	Extensive screw	M12x250	3
2	Cap head screw	M5x8	8
3	Inner wrench	2,3,4,5,6,8	Each 1
4	Double head wrench	14	1
5	Abrasive Wheel (fixed on spindle)	350x32x127	1
6	Abrasive Wheel Chuck flange	—	1
7	Abrasive Wheel balancing block (fixed on chuck)	—	1
8	Balance rack	—	1
9	Balance bar	—	1
10	Chuck puller	—	1
11	Round nut wrench of chuck	—	1
12	Screw driver	5" (-)	1
13	Screw driver	5" (+)	1
14	Cooling water box	—	1
15	Cooling water pump	—	1
16	Cooling water tube	—	1
17	Lower cooling water tube	—	1
18	Electro Magnetic chuck	800 x 400	1
19	Modified abrasive wheel socket	—	1
20	Tool box	—	1
21	Six corner nut	M12	3
22	Plane washer	φ12	3
23	Operation manual	—	1

Photo Gallery

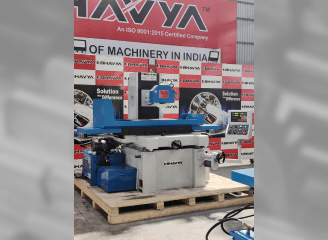

HSG8040A+ with DRO (5)

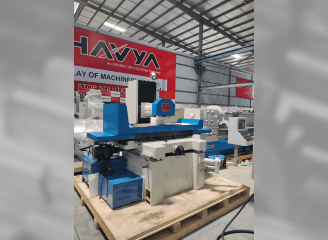

HSG8040A+ with DRO (1)

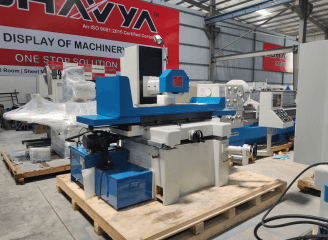

HSG8040A+ with DRO (2)

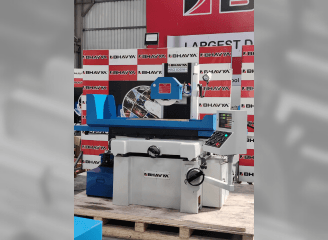

HSG8040A+ with DRO

HSG8040A+ with DRO (3)
