Light Duty Universal Milling Machine

MILLING

Model No

SM-0
SM-1
SM-1H
SM-2
SM-2H

Get A Quote

Technical Specifications

Model	SM-0	SM-1	SM-1H	SM-2	SM-2H
Surface Of Table (MM)	800 x 175	900 x 200	1050 x 250	1200 x 275	1300 x 300
No. of T-Slots	3	3	3	3	3
Size of T-Slots	½"	½"	½"	½"	½"

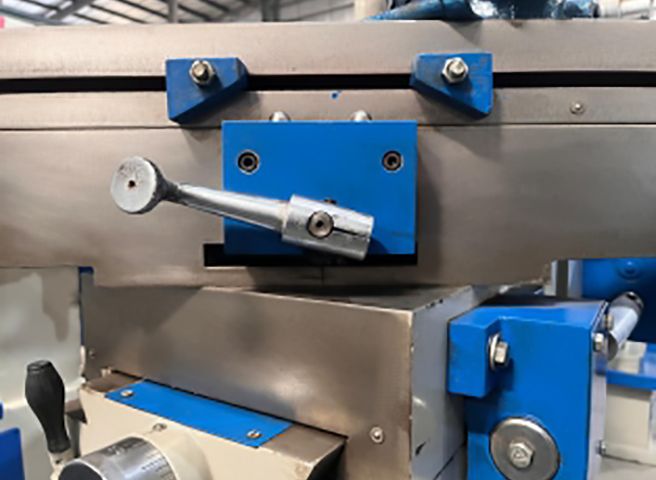

Swivel either Side of Table	45°	45°	45°	45°	45°
Cross Traverse (MM)	150	150	175	200	250
Vertical Traverse (mm)	400	400	450	500	625
Longitudinal Traverse (mm)	475	475	525	625	675
Arbour Diameter (MM)	25.4	25.4	25.4	25.4	25.4
Taper of Spindle	ISO 40	ISO 40	ISO 40	ISO 40	ISO 40

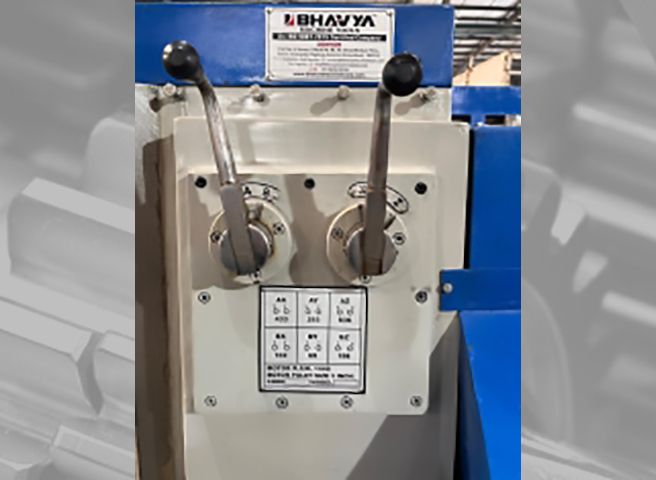

No. of Spindle Speed	6	6	6	9	9
Range of Spindle Speed (RPM)	40-700	40-700	40-700	40-700	40-700
Spindle Diameter (MM)	50	70	80	80	90
No. of Feed in Longitudinal Table (Long.)	2	2	2	3	3
Main Motor Power (HP)	1	1.5	2	2	2
Weight (Kgs.)	450	700	900	1300	1900

*Specifications are subject to changed without prior notice.

Features

Machine is Suitable for Mass Production Purpose.

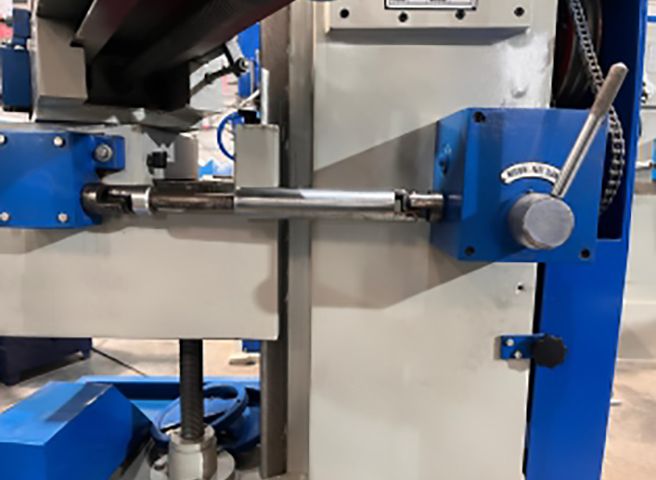

Auto Feed is provided in both directions for Longitudinal movement of table, Vertical & Cross Movement are hand operated.

Photo Gallery

SM-1H

SM-2

SM-2

SM-2

SM-2
