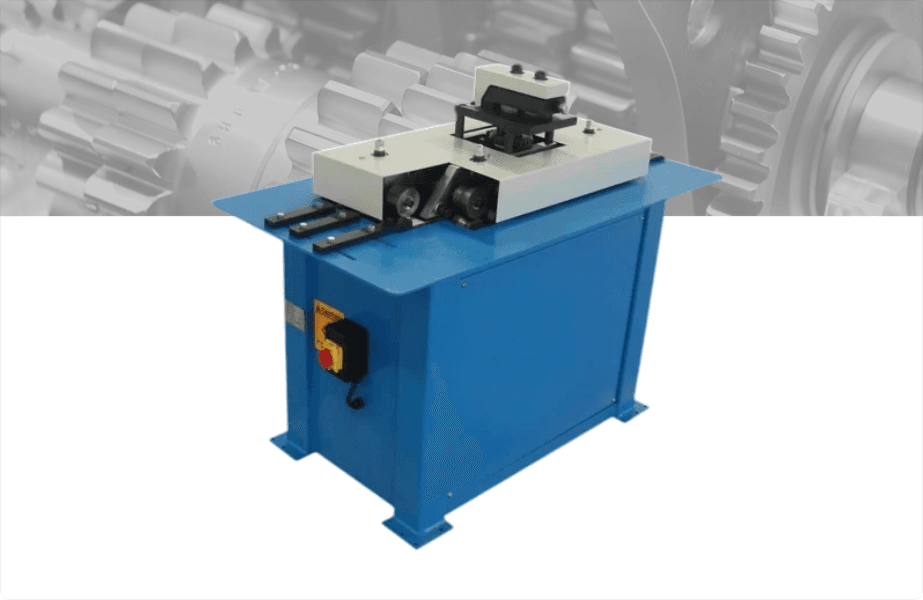

Lock Forming Machine

Lock Forming

Model No

PF-16G
PF-20G

Get A Quote

Technical Specifications

MODEL	PF-16G	PF-20G
Capacity (mild steel)	16 GUAGE max.-25 GUAGE min	20 GUAGE max.-26 GUAGE min
Speed (rpm)	24 FPM	25 FPM
Motor	2.2 KW	0.75 kW
Packing size	1180 x 650 x 1090 mm	1050 x 560 x 1350 mm
N.W/G.W	300/350 kg	160/210 kg

*Specifications are subject to changed without prior notice.

Features

Uses approximately 1“of material.
Adjustable auto- guides
All steel forming head, hardened with ground shafts.
Steel forming rolls are case hardened using matching cut gears and needle bearings throughout.

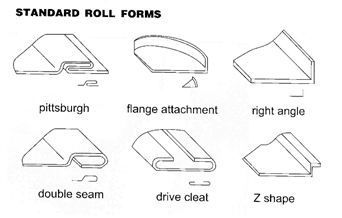

Optional rolls: double seam, drive cleat, flange attachment, and right angle.
