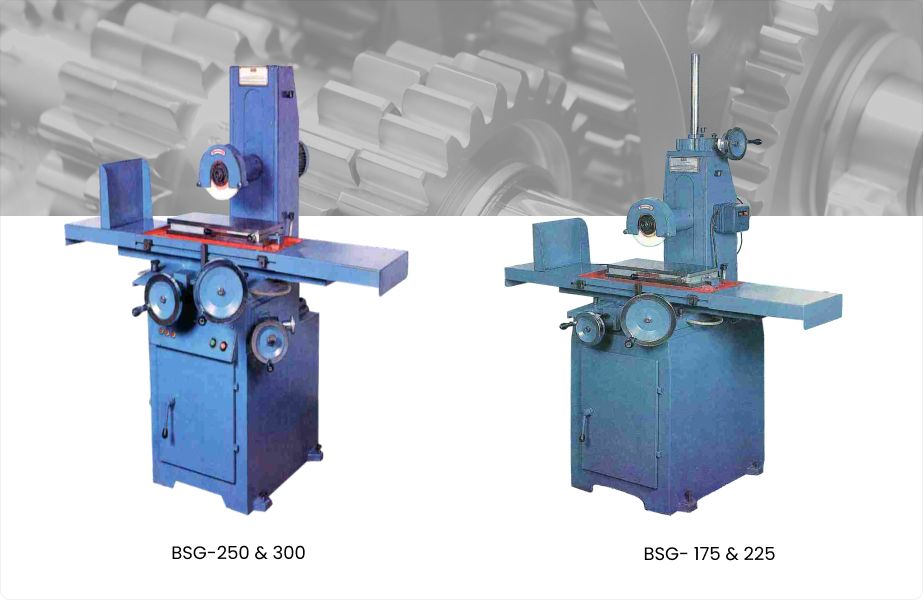

Manual Surface Grinder BSG Series

GRINDER

Model No

BSG-175
BSG-225
BSG-250
BSG-300

Get A Quote

Technical Specifications

Model	BSG-175	BSG-225	BSG-250	BSG-300
Working Surface Of The Table (mm)	175x350	225x450	250x500	300x600
Magnetic Chuck Size	150 x 300	200 x 450	200 x 500	250 x 500
Max. Height From Table To Grind Wheel	250mm	275mm	300mm	300mm
Vertical Feed Gradu	0.01	0.01	0.002	0.002
Cross Feed Gradu	0.05	0.05	0.05	0.05
Size of Grinding Wheel (mm)	175x13x31.75	200x13x31.75	200x13x31.75	200x13x31.75
Spindle Speed (rpm)	2800	2800	2800	2800
Main Motor Power	0.75HP	1HP	2HP	2HP

*Specifications are subject to changed without prior notice.

Features

Vibration-free and noiseless working.
Precised engineering and simple easily accessible controls mean time saving and accurate operation.
The Grinding Accuracy on the machine is Guranteed and controls of the machine are within the easy reach of the operator.
