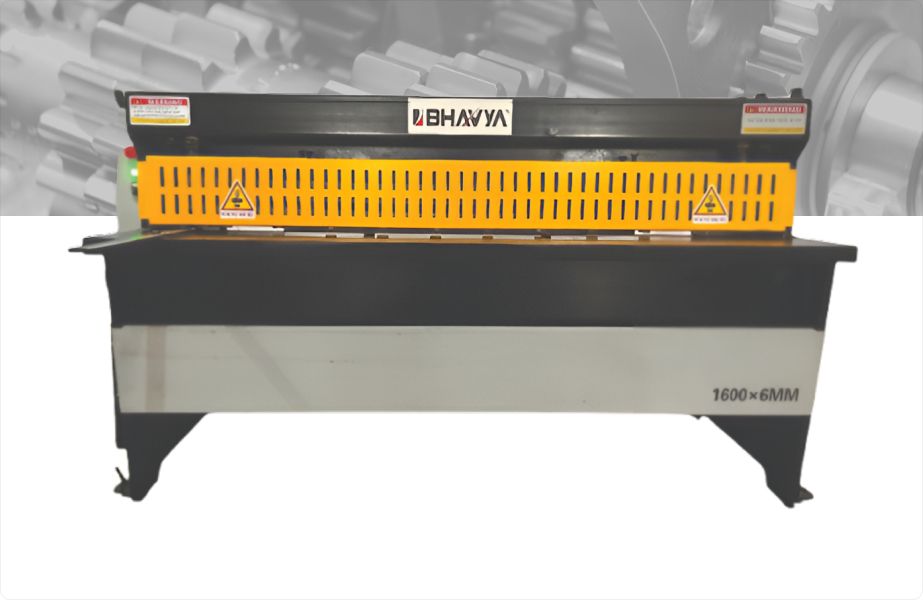

Mechanical Electric Shearing Machine (MSC Series)

SHEARING

Model No

MSC-1.2
MSC-1.5
MSC-2
MSC-3
MSC-4
MSC-6

Get A Quote

Technical Specifications

Model	Cutting Cap	Stroke Per Minute	Table Height	Table Width	Rear Gauge	Motor (HP/kw)	Blade (LxWxT)	Overall Dimension (LxWXH)	Weight
MSC-1.2X2500	2500x1.2mm	33	720mm	300mm	400mm	4/3	2530x60x20mm	3000x680x1100 mm	600 kg
MSC-1.5X2000	2500 X1.5mm	33	720mm	300mm	400mm	6/4.5	2030x60x20mm	2500x1050x1200 mm	500 kg
MSC-1.5X3000	3000 X1.5mm	33	780mm	360mm	400mm	7.4/5.5	3060x60x20mm	3600x1050x1150 mm	1700 kg
MSC-1.5X4000	4000 X1.5mm	33	780mm	360mm	400mm	7.4/5.5	4060x60x20mm	4600x1150x1200 mm	2100 kg
MSC-2X1000	1000x2mm	33	720mm	300mm	400mm	4/3	1030x60x20mm	1500x680x1100 mm	360 kg
MSC-2X1300	1300 X 2mm	33	720mm	300mm	400mm	4/3	1030x60x20mm	1800x680x1100 mm	380 kg
MSC-2X1500	1500 X 2mm	33	720mm	300mm	400mm	4/3	1530x60x20mm	2000x680x1100 mm	400 kg
MSC-2X1600	1600 X 2mm	33	720mm	300mm	400mm	4/3	1620x60x20mm	2100x680x1100 mm	420 kg
MSC-2X2000	2000x2mm	33	780mm	360mm	400mm	6/4.5	2030x60x20mm	2600x1050x1150 mm	1200 kg
MSC-2X2500	2500 X2mm	33	780mm	360mm	400mm	7.4/5.5	2530x60x20mm	3100x1050x1150 mm	1400 kg
MSC-3X1300	1300 X 3mm	33	780mm	360mm	400mm	6/4.5	1320x60x20mm	1900x1100x1200 mm	830 kg
MSC-3X1500	1500 X 3mm	33	780mm	360mm	400mm	6/4.5	1620x60x20mm	2100x1050x1150 mm	900 kg
MSC-3X1600	1600x3mm	33	780mm	360mm	400mm	6/4.5	2030x60x20mm	2200x1100x1200 mm	920 kg
MSC-3X2000	2000 X 3mm	33	780mm	360mm	400mm	7.4/5.5	2530x60x20mm	2600x1050x1150 mm	1150 kg
MSC-3X2500	2500 X 3mm	33	780mm	360mm	400mm	7.4/5.5	2530x60x20mm	2600x1050x1150 mm	1150 kg
MSC-4X1300	1300 X 4mm	33	780mm	360mm	400mm	7.4/5.5	1320x60x20mm	1900x1100x1200 mm	850 kg
MSC-4X1500	1500x4mm	33	780mm	360mm	400mm	7.4/5.5	1530x60x20mm	2100x1100x1200 mm	930 kg
MSC-4X1600	1600 X 4mm	33	780mm	360mm	400mm	7.4/5.5	1620x60x20mm	2200x1100x1200 mm	1000 kg
MSC-4X2000	2000 X 4mm	33	780mm	360mm	400mm	10/7.5	2030x60x20mm	2600x1050x1250 mm	1600 kg
MSC-4X2500	2500 X 4mm	33	780mm	360mm	400mm	10/7.5	2530x60x20mm	3100x1050x1250 mm	1900 kg
MSC-6X1300	1300x6mm	33	780mm	360mm	400mm	10/7.5	1320x60x20mm	1900x1100x1200 mm	1900 kg
MSC-6X1500	1500 X 6mm	33	780mm	360mm	400mm	10/7.5	1530x60x20mm	2200x1100x1200 mm	1400 kg

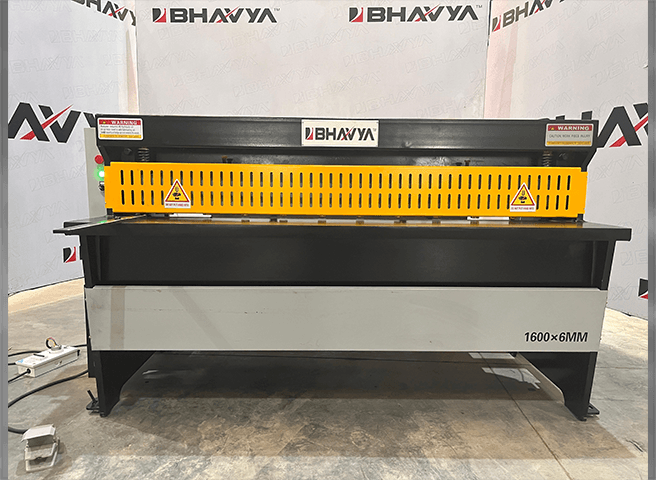

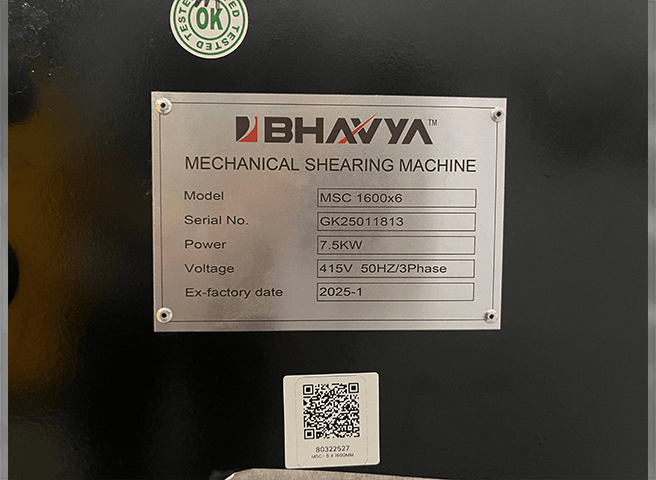

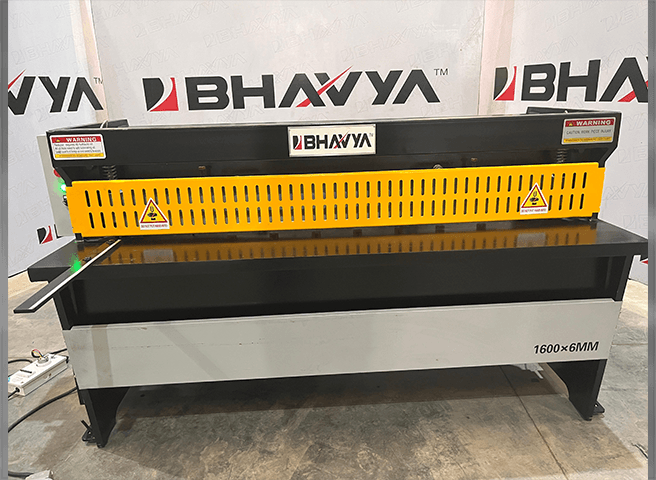

MSC-6X1600	1600 X 6mm	33	780mm	360mm	400mm	10/7.5	1620x60x20mm	2200x1100x1250 mm	1400 kg

*Specifications are subject to changed without prior notice.

Accessories

Standard :

4 Way HCHCR blade
Finger safety guard
Foot Pedal
Gear Cover
Tool Post Key
Gear box with Chain drive & Fittings

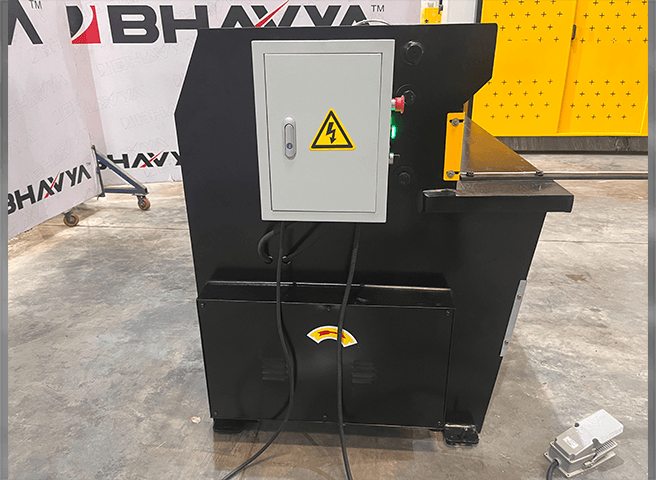

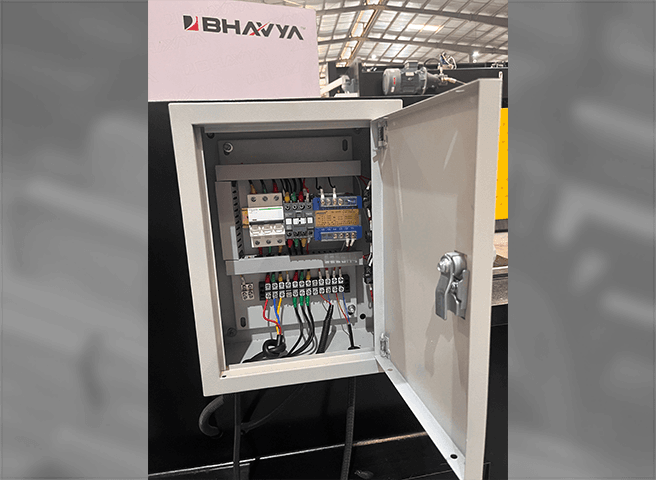

Electrical - schneider
Manual Lubrication System

Features

The Frame & table is fabricated with solid steel plates & heavy cross ribbings.
Gear bush and rolling key is tempered.
Movable Foot Pedal.
Hand Operated Back Gauge 400 mm with micro calibration setting.
