Mechanical Iron Worker Machine

Iron Worker

Model No

MIW-36
MIW-50
MIW-90

Get A Quote

Technical Specifications

MODEL	MIW-36	MIW-50	MIW-90
Max Force	36 TON	50 TON	90 TON
Tool STROKE	27mm	36 mm	36 mm
Strokes Times	30 times/min	30 times/min	30 times/min
Motor Power	2.2 KW/415V	3 KW/415V	4 KW/415V
Round Punching	22x8 mm	22x10 mm	31x12 mm
Capsule Punching	36x16x8 mm	40x18x10 mm	40x21x12 mm
Angle Cutting	75x75x8 mm	100x100x8	125x125x8
Channel Cutting	75x40 mm	100x50 mm	150x75 mm
Cutting Blade	200 mm	230 mm	340 mm
Flate Cutting	200x8 mm	200x10 mm	340x12 mm
Nothing Tool	65x65 mm	65x65 mm	80x70 mm
Round Bar	30 mm	35 mm	40 mm
Square Bar	20 mm	30 mm	35 mm
Overall Dimensions (LXWXH)	900x600x1100 mm	900x600x1250 mm	1100x600x1450 mm
Machine Weight	480 KG	700 KG	1000 KG

*Specifications are subject to changed without prior notice.

Accessories

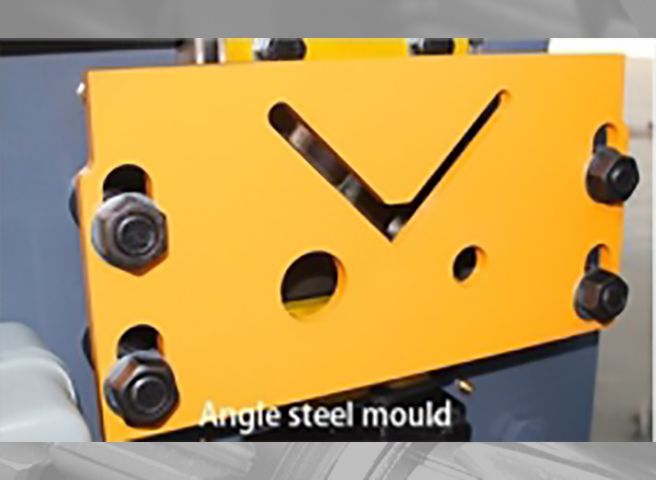

Angle Steel Mold

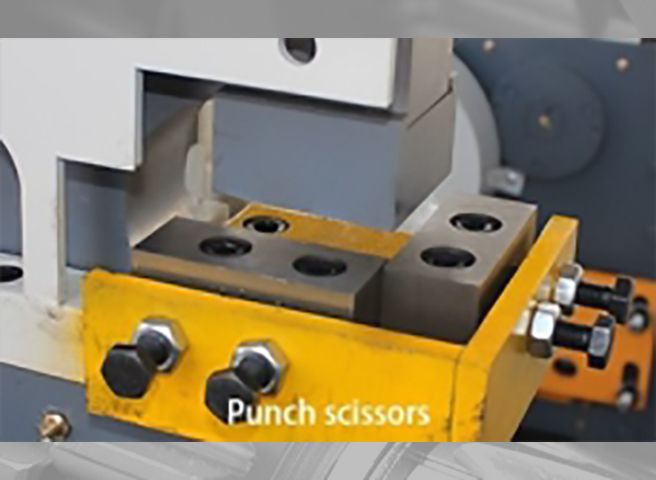

Notching Unit

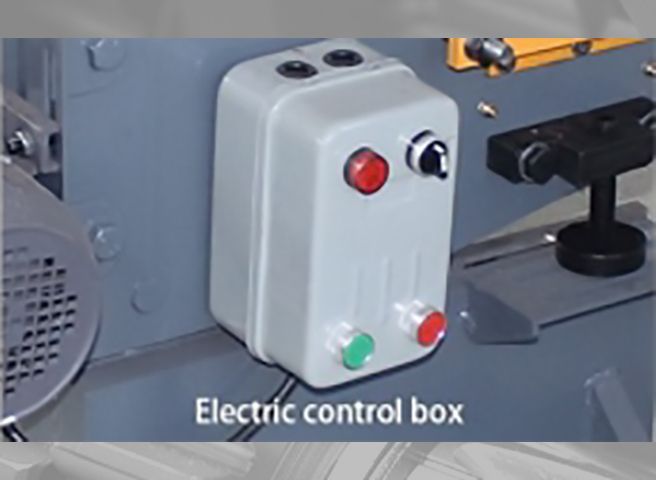

Elctric Control Box

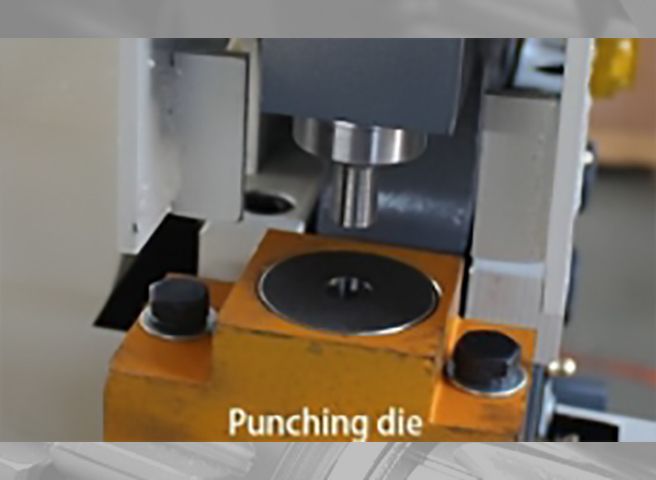

Punching Unit

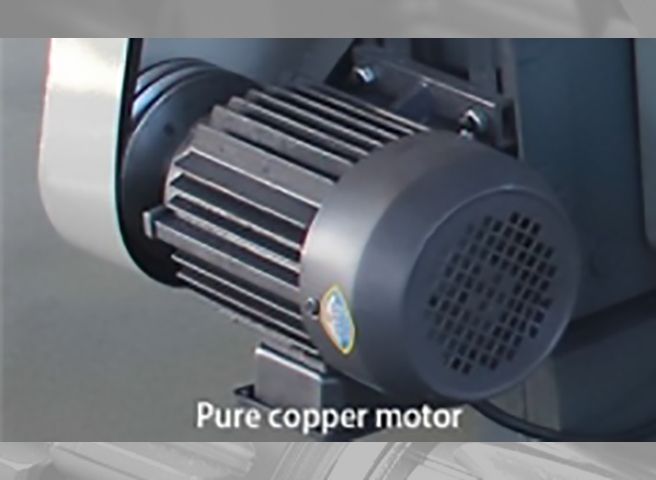

Main Motor

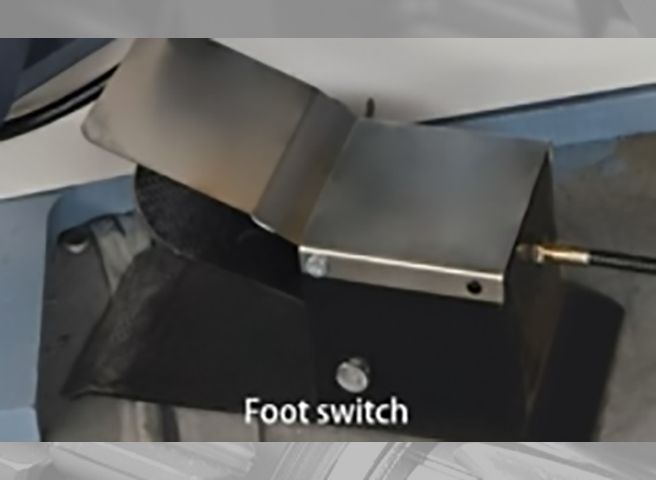

Foot Switch
