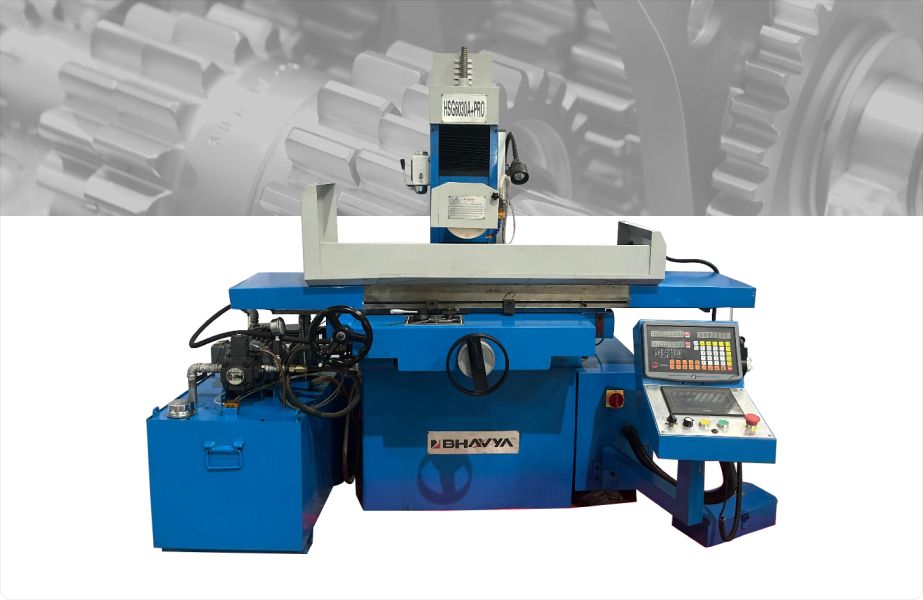

PLC OPERATED HYDRAULIC SURFACE GRINDER HSG6030A+PRO

HSG6030A+PRO

Model No

HSG5025A+ PRO
HSG6030A+ PRO
HSG8040A+ PRO

Get A Quote

Technical Specifications

Specification	Unit	HSG6030A+ PRO
Size of worktable (W × L)	mm	300 × 600
Max grinding work piece size (W × L × H)	mm	300 × 600 × 300
Max worktable longitudinal movement	mm	620
Max worktable cross movement	mm	325
Max workable load	Kg	150
T-slot numbers	mm × n	14 × 1
Mini vertical feed	mm	0.005
Front & back hand wheel feed	mm	0.02 / graduation, 3 / revolution
Max distance from spindle center-line to worktable surface	mm	65 – 400
Worktable longitudinal movement speed	m/min	3 – 23
Grinding head rapid movement speed	m/min	8
Grinding head power	kW	1.5
Spindle rotation speed	r/min	2850
Work piece surface roughness	µm	Ra 0.63
Grinding wheel size (D × W × d)	mm	200 × 20 × 31.75
Grinding head vertical servo motor power	kW	1
Front & back movement feed motor power	W	90
Oil pump motor power	kW	1.5
Air cooling	W	36
Overall size of machine (L × W × H)	mm	About 1870 × 1200 × 1840

Name	Standard
Main Body Casting	HT250, Resin sand molding, aging treatment
PLC System	XINJIE
Spindle Motor Brand	BHAVYA
Feed Motor and Driver	BHAVYA
Sleeve-type High-Precision Spindle Assembly	GUYANG
Workbench Directional Control Hydraulic Valve	TAIWAN JUNCHUNG
Ball Screw Assembly	PMI / NANJING GONGYI
Bearing For	HRB / NSK
Locking Nut	M20 × 1.5P SWIFT
Belt	BHAVYA

*Specifications are subject to changed without prior notice.

Accessories

No	Name	Specification	Qty	Mark
1	Cooling System		1 Set
2	Grinding Wheel and Chuck	200×16×31.75	1 Set	Installed on Machine
3	Iron Pad	HJ×81－1	3 Sets	In Accessories Box
4	Balance Bar		1 Piece	In Accessories Box
5	Balance Block and Nut	M6×12	3 Sets	Installed on Machine
6	Iron Scrap Rake		1 Piece	In Accessories Box
7	Screwdriver	5“ (Flat) / 5“ (Cross)	Each One	In Accessories Box
8	Flange Chuck Puller		1 Piece	In Accessories Box
9	Double-Ended Spanner	14	1 Piece	In Accessories Box
10	Foundation Nuts and Washer	M12×250, M12, φ12	3 Sets	In Accessories Box
11	Grinding Wheel Balance Bar		1 Piece
12	Dresser Holder	Without Diamond Pen	1 Piece	In Accessories Box
13	DRO		1 Set	Installed on Machine

Photo Gallery

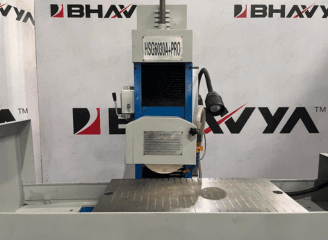

GRINDERHSG6030A+pro3

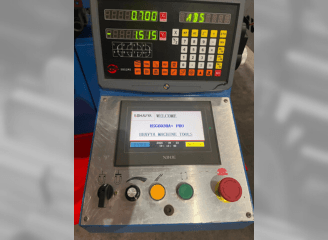

GRINDERHSG6030A+pro

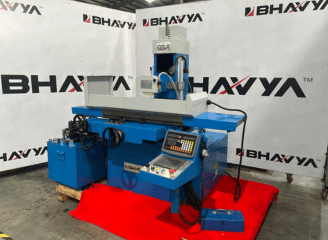

GRINDERHSG6030A+pro1

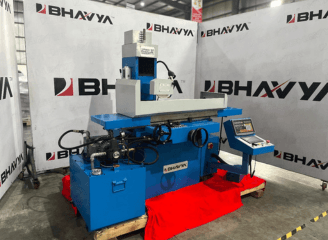

GRINDERHSG6030A+pro2
