Radial Drill Machines
Radial Drill Heavy Duty Series(ERD - HRD)

Radial Drill Heavy Duty Series(ERD - HRD)

DRILL

Model No

ERD 50 x 16B
HRD 50 x 16
HRD 50 x 20

Get A Quote

Technical Specifications

Model	ERD50 x 16B	HRD50 x 16	HRD50 x 20
Capacity
Drilling Capacity	50mm	50mm	50mm
Tapping Capacity	M25	M36	M36
Boring Capacity	100mm	120mm	120mm
Drill Head
Taper In Spindle	MT-5	MT-5	MT-5
Spindle Travel	315mm	315mm	315mm
Number of Spindle Speeds	12	16	16

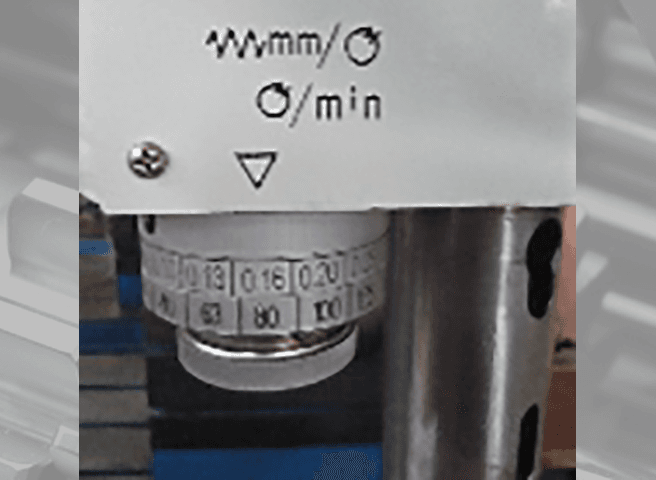

Range of Spindle Speeds	34-1280 rpm	25-2000 rpm	25-2000 rpm
Number of Spindle Auto Feeds	12	16	16
Range of Spindle Auto Feeds	0.1-0.56 mm/rev	0.04-3.20 mm/rev	0.04-3.20 mm/rev

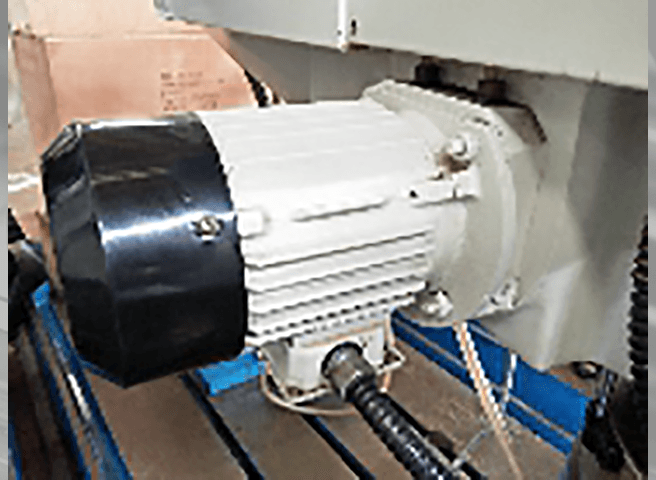

Drill Head & Column Locking	Mechanical	Hydraulic	Hydraulic
Working Range
Arm Length	1160mm	1770mm	2000mm
Travel of Drill Head	1250mm	1250mm	1550mm
Drilling Radius Min/Max.	525/1775mm	525/1775mm	675/2275mm
Dist. Spindle Axis and Column	360-1600mm	350/1600mm	350/2000mm
Dist. Spindle and Base Plate	300-1050mm	320/1220mm	320/1220mm
Diameter Of Column	280mm	350mm	350mm
Size in T Slots In Box Table	16mm	22mm	22mm
Box Table Size	630x500x500mm	950x630x500mm	1000x800x560mm
Number Of T Slots In Box Table	5	7	7
Size in T Slots in Box Table	16mm	22mm	22mm
Electrical
Power Supply of Main Motor	4 kW	4 kW	4 kW
Power Supply of Elevating Motor	1.5 kW	1.5 kW	1.1 kW
Dimension & Weight
Length x Width x Height	2270x950x2450mm	2500x1070x2550mm	2900x1010x2650mm
Approx Weight	2450 Kgs	3500 Kgs	3650 Kgs

*Specifications are subject to changed without prior notice.

Accessories

All Electrical Motors
Box Table
Coolant pump with Fitting
Machine Lamp

Tool Box
Drill Chuck with shank
Foundation Bolts
Taper Sleeve Set (MT5-4, MT5-3, MT5-2)

Photo Gallery

ERD-50x16B

HRD-50x16

HRD-50x20

Videos

HRD Series - All Geared Radial Drill Machine

HRD 50 X 16 Radial Drill

ERD 50 X 16B Radial Drill
