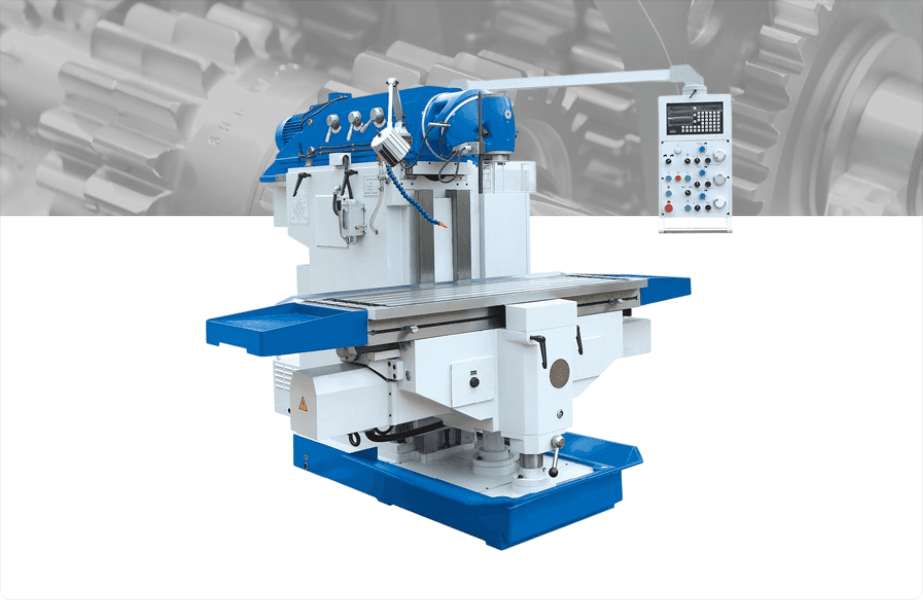

RAM Milling Machine

Model No

ERM-1246
ERM-1650
ERM-2050

Technical Specifications

SPECIFICATION	UNIT	ERM-1246	ERM-1650	ERM-2050
Table size	mm	460x1235	500x1600	500x2000
T-slots(NO./width/pitch)	mm	5/18/80	5/18/80	5/18/80
Table travel (X/Y/Z)	mm	900/650/450	1200/700/500	1400/700/500
Swivel angle of milling head	-	360°	360°	360°
Spindle taper	-	ISO40	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30-2050	(27) 30-2050	(27) 30-2050
Table feed(X&Y/Z)	mm/min	10-1000/6-640	10-1000/5-500	10-1000/5-500
Table rapid speed	-	2200/2200/1100	2200/2200/1100	2200/2200/1100
Distance between spindle nose and table surface	mm	58-508	50-550	50-550
Distance from spindle center line to column	mm	20-670	45-745	45-745
Main motor power	Kw	5.5	7.5	7.5
Feed motor	Kw	X/Y: 18NM:Z:27NM	X/Y: 18NM:Z:27NM	X/Y: 18NM:Z:27NM
Max load	Kg	800	1800	1800
Overall size	mm	2570x2035x1990	2625x2460x2080	2625x2460x2080
weight (Approx)	kg	3600	4200	4500

*Specifications are subject to changed without prior notice.

Features

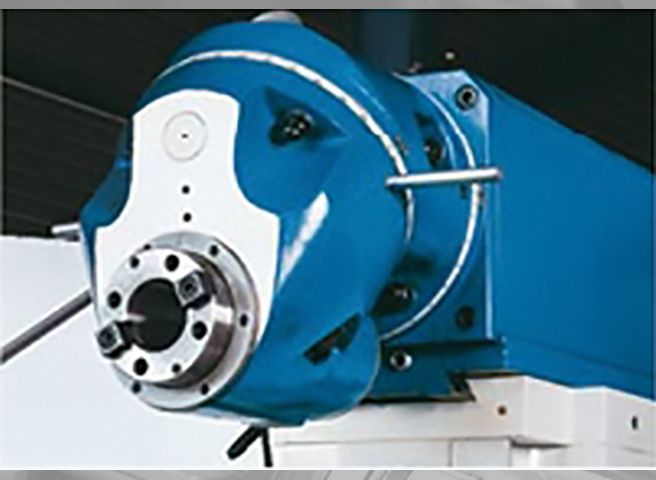

It can mill any angle surface through front half-sphere by swivelling milling head Upper.

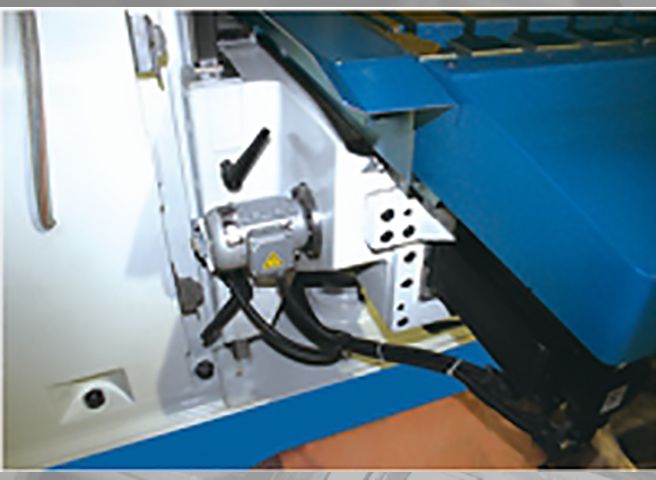

Table 3 axes with ball screws, high precision Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate.
Mechanical change speeds in headstock. powerful milling
Table with an extra supporting column, big load, high accuracy
