Semi Auto & Automatic Pneumetic Pipe Cutting Machine

Pipe Cutting

Model No

PC-315P
PC NC - 315P - A/B

Get A Quote

Technical Specifications

Product Overview

Pneumatic Semi-Automatic & Automatic Pipe Cutting Machine features a specialized structure that includes pneumatic automatic clamping and automatic cutting movement, including degree cutting capabilities. This configuration is specifically designed for the mass production of pipe fittings and offers a highly efficient solution for your manufacturing needs.

MODEL	PC-315P	PC NC - 315P - A/B
Degree	90° & 45°	90° & 45°
Square Pipe	80 x 80mm & 60 x 60mm	80 x 80mm & 60 x 60mm
Round Pipe	Φ 80mm & Φ 70mm	Φ 80mm & Φ 70mm
Feeding Stroke	Manual	Model A-450 mm or Model B-750 mm
Blade Speed	60-120 RPM	60-120 RPM
Main Motor Power	2.4/3.0 KW	2.4/3.0 KW
Applied Saw Blade	Φ 250-315 mm	Φ 250-315 mm
Arbor Dia	32 mm	32 mm
Cooling System	90w Motor, Automatic	90w Motor, Automatic
	Cooling Circulation	Cooling Circulation
Machine Weight	280 kg	280 kg
Machine Size	1000mm x 1350mm x1400mm	1500mm x 950mm x1600mm

*Specifications are subject to changed without prior notice.

Photo Gallery

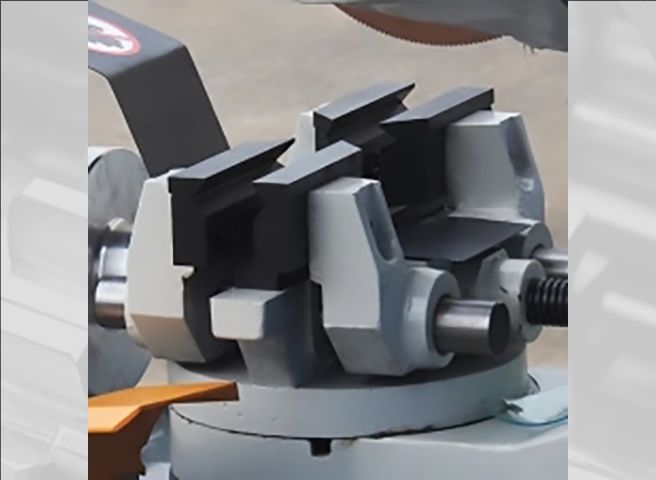

Quick Pneumatic Clamps

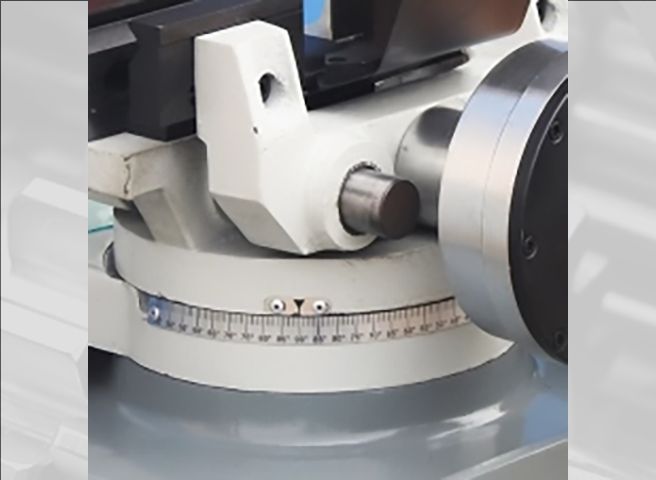

Precision Angle Adjustment

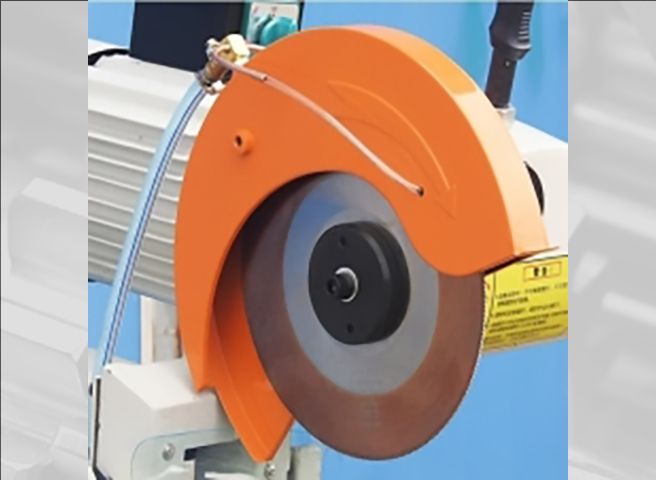

HSS Blade with Inbuilt Coolant System

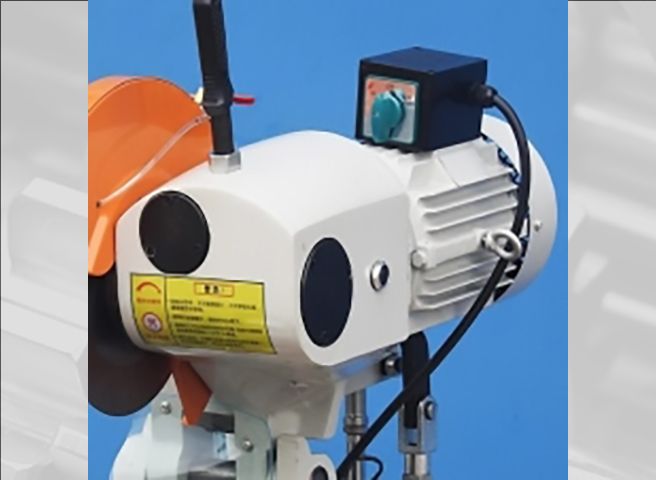

High Quality Gearbox with Dual Speed Flange Mounted Motor
