Semi Automatic Hydraulic Pipe Cutting Machine

Pipe Cutting

Model No

PC-325H
PC-350H
PC-425H

Get A Quote

Technical Specifications

Product Overview

Hydraulic Semi-Automatic Pipe Cutting Machine features a Heavy-Duty structure that includes Hydraulic automatic clamping and Hydraulic cutting movement, delivering stronger cutting force, higher stability, Suitable for thick-walled pipes, including degree cutting capabilities. This configuration is specifically designed for the mass production of pipe fittings and offers a highly efficient solution for your manufacturing needs.

MODEL	PC-325H	PC-350H	PC-425H
Degree	90° 45°	90° 45°	90ª 45°
Square Pipe	85x 85mm 65 x 65mm	110 x 110mm 100 x 100mm	120 x 120mm 110 x110mm
Round Pipe	Φ 85mm Φ 75mm	Φ 110mm Φ 95mm	Φ 120mm Φ 110mm
Blade Speed	60-120 RPM	60-120 RPM	60-120 RPM
Main Motor Power	2.4/3.0 KW	3.3/4.0 KW	3.3/4.0 KW
Applied Saw Blade	Φ 250-315 mm	Φ 350 mm	Φ 425 mm
Arbor Dia	32 mm	32 mm	32 mm
Cooling System	90w Motor, Automatic Cooling Circulation	90w Motor, Automatic Cooling Circulation	90w Motor, Automatic Cooling Circulation
Machine Weight	300 kg	700 kg	750 kg
Machine Size	920mm x1250mm x1700mm	1650mm x 1500mm x2000mm	1800mm x 1750mm x 2300mm

*Specifications are subject to changed without prior notice.

Photo Gallery

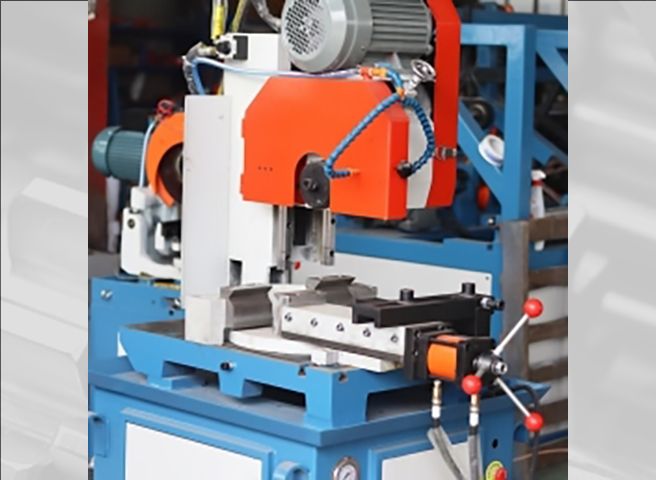

Vertical Head Movement with Double Linear Guideways

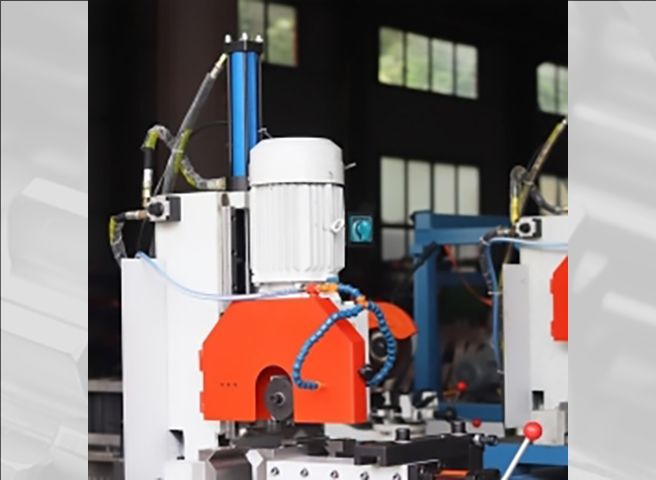

Gear Box Drive with Flange Mounted Motor MODEL-PC-350H

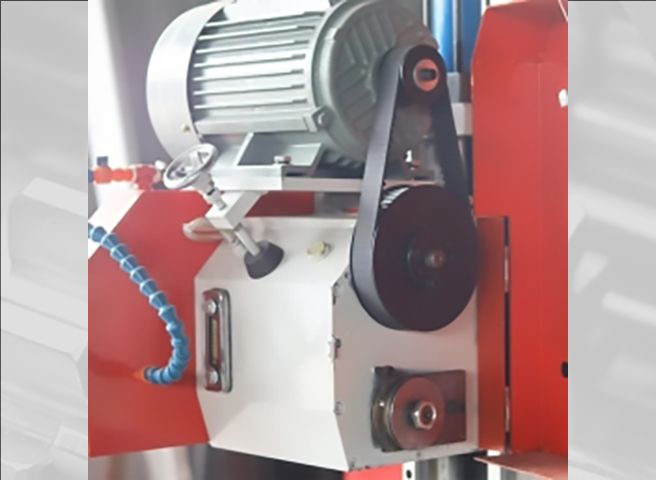

Gear Box Drive with Timing Belt Type Motor MODEL-PC-425H

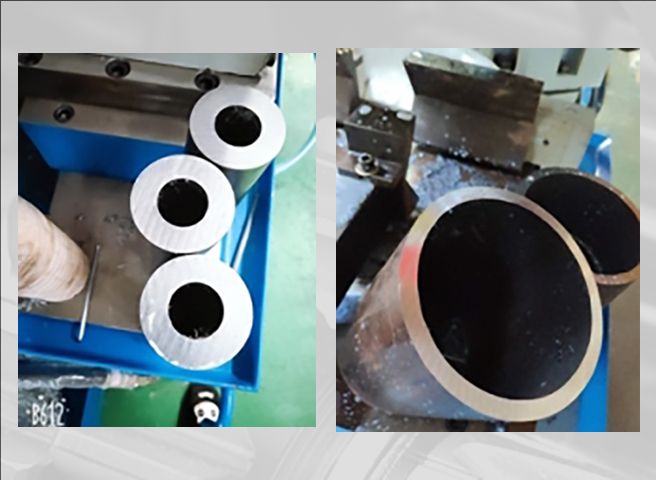

Cutting Samples
