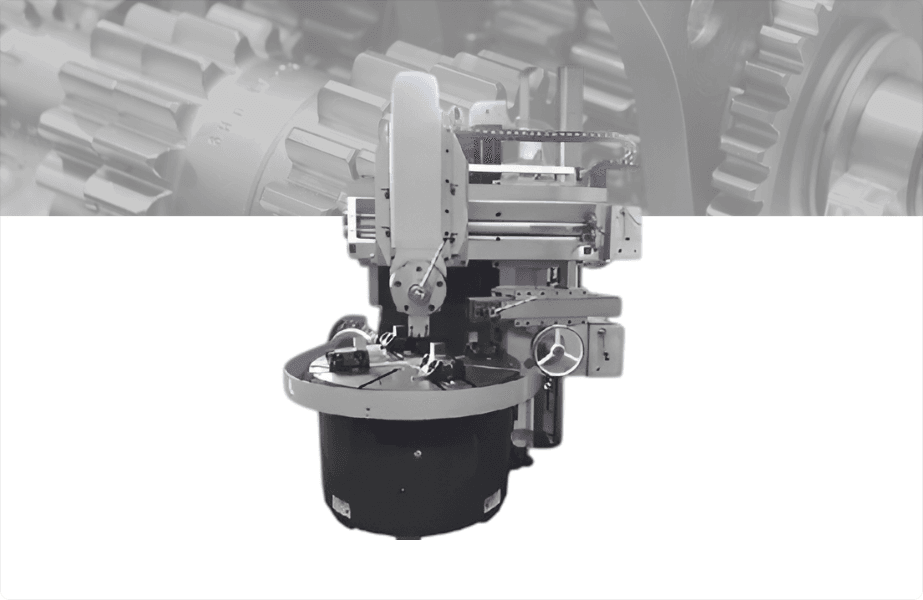

Single Column Vertical Lathe

LATHE

Model No

SVT12
SVT16
SVT20
SVT23
SVT25
SVT26

Get A Quote

Technical Specifications

PARTICULARS / MODEL	UNIT	SVT12	SVT16	SVT20	SVT23	SVT25	SVT26
Max. cutting diameter of vertical tool post	mm	1250	1600	2000	2300	2500	2600
Max. cutting diameter of side tool post	mm	1100	1400	1800	2000	2300	2400
Max. cutting height	mm	1000	1000/1200/1400	1250	1350	1600	1600
diameter	mm	1000	1400	1800	2000	2250	2250
max. loading	t	3.2	5	8	8	10	10
speed range	RPM	6.3-200	5-160	3.2-100	3.2-100	2-63	2-63
step range	step	16	16	16	16	16	16
max. torque	Kn.m	17.5	25	25	25	35	35
feeding rang	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
feed steps	step	12	12	12	12	12	12
cutting force	kn	20	25	25	25	25	25
vertical travel	mm	650	800/1000	800/1000	800/1000	1000	1000
horizontal travel	mm	700	915	1200	1300	1400	1500
swing angle		±30	±30	±30	±30	±30	±30
feed range	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
cutting force	kn	20	20	20	20	20	20
vertical travel	mm	900	900	900	900	900	900
horizontal travel	mm	630	630	630	630	630	630
Vertical (side) turret rapid travel speed	m/min	1.8	1.8	1.55	1.55	1.55	1.55
Cross beam travel	mm	650	650/850/1050	850	1050	1250	1250
Beam lifting speed	mm/min	350	350	350	350	320	320
Tool bar section size	mm	30*40	30*40	40*40	40*40	40*40	40*40
Feed motor power	kw	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8	1.3/1.8
Main motor	kw	22	30	30	30	37	37
Machine weight (Approx)	t	8.5	12.4/14/14.8	17	18	23	26/28
Overall dimension(LWH)	mm	236022802800	283026703010	320028003250	321028503300	330040003500	330040003500

*Specifications are subject to changed without prior notice.

Features

Advanced vertical lathe technology with FEA-based modular design
Integrated mechanical, electrical, and hydraulic systems for high machining performance
gh-grade castings, heat-treated structure, and hardened guideways (HRC40+) for long life and stable accuracy
Precision pentagon turret with 120-bisection rat tooth positioning for superior rigidity
Reliable OMRON (Japan) PLC control with well-organized
cabinet and premium components
Standard 2-axis DRO (optional 4-axis DRO)
16-step speed change via electronic valve controller for smooth and reliable operation
Precision-ground gearbox gears for low noise and long service life
Versatile accessories, strong after-sales support, ready for immediate production
Multiple options available: German MECANO panel box,Roller guideway, higher table stand, extended and square ram
