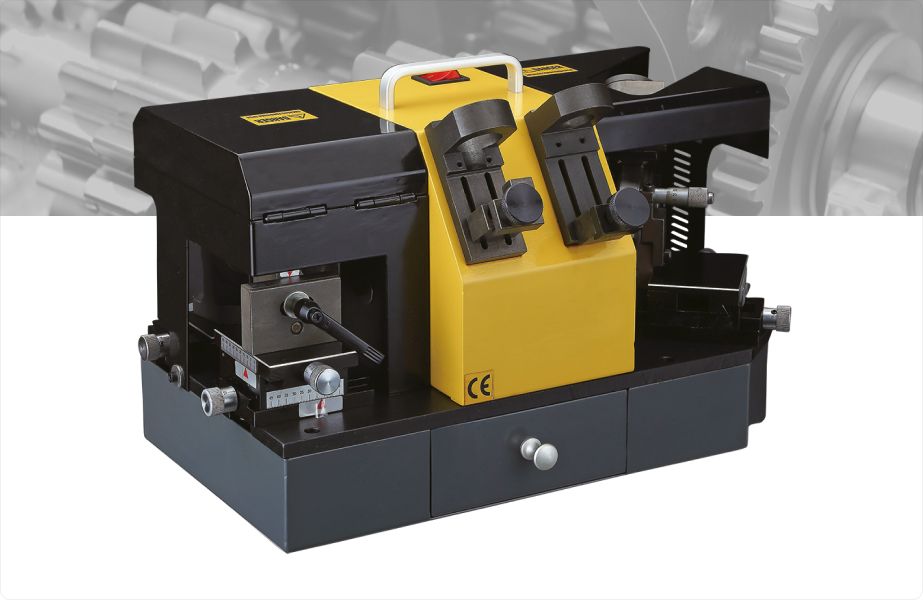

Spiral Screw Tap Re-Sharpener (Y6B)

RESHARPENING

Model No

Technical Specifications

Model	Y6B
Range	M5 - M20
Point Angle	5° ~ 30°
Power	220V 180W
Motor Speed	4800rpm
Grinding Wheel	CBN(HSS) or SD
Dimension	48 x 30 x 33 cm
Weight	22 kg

*Specifications are subject to changed without prior notice.

Features

Portable screw tap grinder can grind 2-flute, 3-flute, 4-flute tap. Choosing can grind 5-flute.
Y6B can grind the spiral flute tap's front cutting face, and flat tap's front cutting lip and face.
