Tube Bending Machine

Tube Bending

Model No

JTB-40
JTB-50
JTB-80

Get A Quote

Technical Specifications

MODEL	UNIT	JTB-40	JTB-50	JTB-80
Outer Diameter	mm	16-40	16-51	40-80
Thickness	mm	1-3	1-5	1-9
Angle of Bending	Degree	180	180	180
Motor	kw	1.5kw	2.2	5.5
N.W./G.W	kg	220/250	550/620	1300/1400
Packing Size	mm	780x540x771	1450x690x1170	1500x910x1550
STANDARD DIES	mm	16, 20, 25, 38	25, 32, 38, 48	60, 76

*Specifications are subject to changed without prior notice.

Features

Light duty / heavy duty mechanical/hydraulic operated pipe bending machines for various applications like furniture, Two wheeler accessories, Decorative items, Automotive seat frames, Hydraulic piping, Chemical & Process tubes & Heat Exchanger Concentric Tubes etc.
These machines are very compact & robust in design and useful for mass production

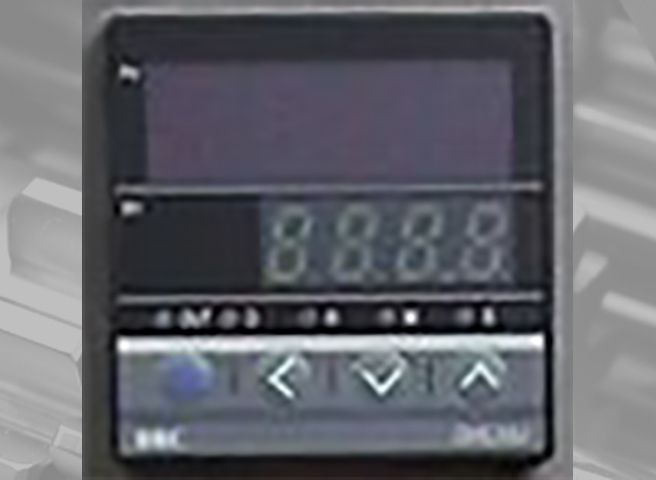

DRO For Accurate Bending
Quick Die changing System

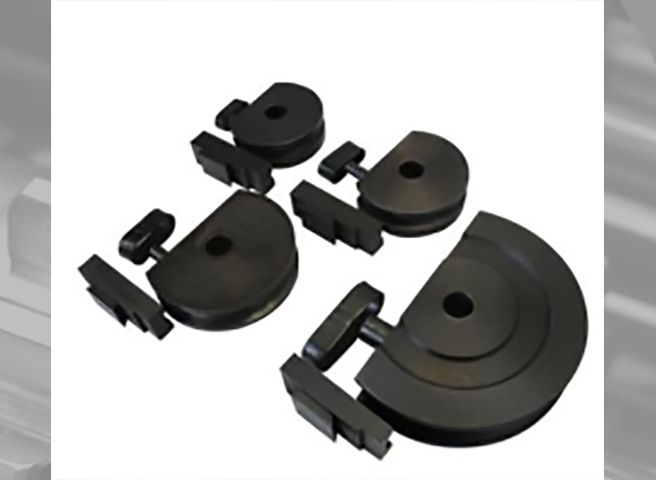

Hardened And Ground Die

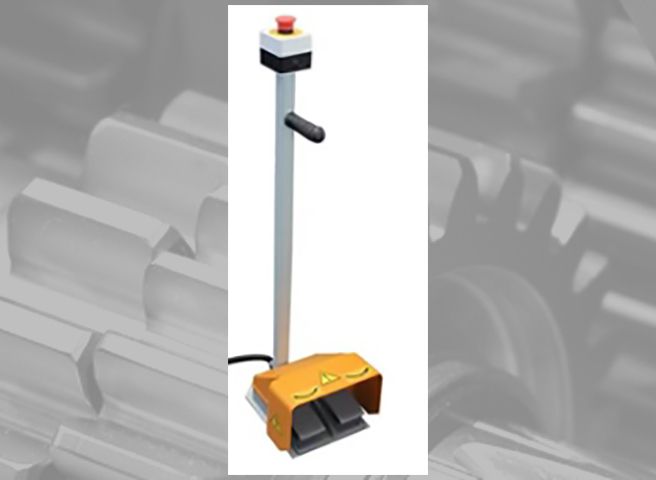

Foot Switch With Emergency Stop
