Tube Fiber Laser Cutting Machine

6022 Series

Model No

6020 Series
6022 Series
3015 Series

Get A Quote

Technical Specifications

Model	BDC-3015	BDC-4020	BDC-6020	BDC-6025
Pipe Cutting Length	6000 mm	6000 mm	6000 mm	6000 mm
Chuck Diameter	130 mm	240 mm	350 mm	350 mm
Laser Power	<6000 W	<6000 W	<6000 W	12000 W
Max. Positioning Acceleration	10 m/s²	10 m/s²	10 m/s²	10 m/s²
Positioning Accuracy	±0.02 mm/m	±0.02 mm/m	±0.02 mm/m	±0.02 mm/m
Reposition Accuracy	±0.03 mm	±0.03 mm	±0.03 mm	±0.03 mm
Rotation Axis Speed	100 rmp	100 rmp	80 rmp	60 rmp

*Specifications are subject to changed without prior notice.

Features

The special pipe laser cutting machine consists of 7 shafts
It can realize the cutting of round, square, rectangular and ellipti cal pipes
It can realize the one-time forming and processing of 6-meter pipe, and can be equipped with 9-meter and 12
meter pipe cutting machines with different pipe lengths and diameters
The equipment is matched with feeding shall and pulling shaft
It can cut multiple pipes with different directions and diameters on the main pipe
It can cut variable angle groove surface
It is known as pipe cutting machine and maternal expert in the industry

Photo Gallery

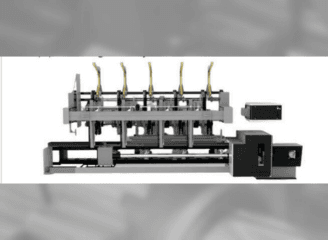

Automatic Feeding

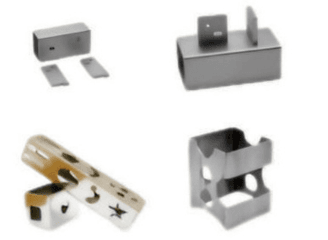

Tube machine
