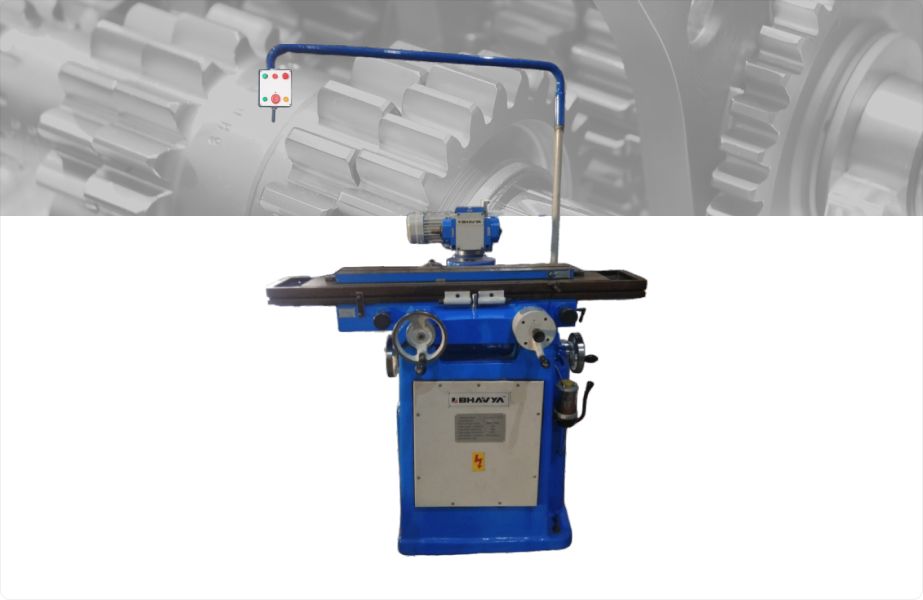

Universal Tool & Cutter Grinding Machine

GRINDER

Model No

250 TM
250 T
280 T

Get A Quote

Technical Specifications

Model		250 TM	250 T	280 T
Max. Swing on Std. Center	mm	250	250	280
Swing With Raising Blocks	mm	350	350	380
Length Between Work Head
And RH Tail Stock	mm	330	520	610
Admit Between Centers	mm	440	670	760
Max Height Center Of Wheel
Above Table	mm	300	300	380
Longitudinal Traverse	mm	400	480	510
Cross Traverse	mm	200	250	250
Swivel Either Side Of Centre (End scale)	deg	-	9	9
Swivel LH/RH Of Column (Center scale)	deg	45°/45°	45°/45°	45°/45°
Size Of Table	mm	750 x 115	920 x 140	1010 x 140
Vertical Adjustment Of Wheel Head	mm	210	210	290
Wheel Head Swivel	deg	3600	3600	3600
Tilting In Either Direction	deg	180±	180±	180±
Spindle Speed	rpm	3800/5600	3800/5600	3800/5600
Motor Power	KW/HP	0.75/1	0.75/1	0.75/1
Net Weight Of The Machine	kg	750	1150	1250
Gross Weight Of The Machine	kg	900	1350	1450
Dimension Of Machine (L x W x H)	mm	1075 x 1100 x 1400	1325 x 1170 x 1460	1325 x 1170 x 1460

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Center height gauge
Suitable electricals
Grounding wheels-3 nos
Center with morse taper no. 3
All necessary spanners and wrenches
Maintenance and instructions manual
Wheel guards with guard holder-3 nos
Plain tooth rest and extension with one blade
Universal cutter head with Mt-3 adopter sleeves
Left hand center tail stock Diamond holder (excluding)
Right hand, quick acting spring loaded center tail stock
Universal tooth rest and extension and micro adjustment to blade

Special :

Dust exhausting unit
Hob grinding attachment
Radius dressing attachment
Radius grinding attachments
Static wheel balancing unit
Collapsible bellows for column
Long reamer grinding attachment
Angular wheel dressing attachment
Gear milling cutter grinding attachment
Cylindrical internal grinding attachment
Cylindrical external grinding attachment
A) swivel vice B) 2-way & 3-way swivel vice Face, milling cutter grinding attachment

Features

Collet Attachment & Collets
4" Self Centering Chuck
Positive Indexing Attachment
Extension Piece for Internal Grinding Spindle
Cutter Arbors
Wheel Flanges
Dressing Diamond
Machine Lamp with Transformer

Leading Manufacturer, Exporter, and Supplier of Universal Tool and Cutter Grinding Machines

Bhavya Machine Tools is a trusted name in the engineering and manufacturing industry, recognized globally for delivering precision-engineered Universal Tool and Cutter Grinding Machines. Designed to meet the diverse requirements of metalworking and cutting tool industries, these machines ensure superior accuracy, durability, and ease of operation.

The Universal Tool and Cutter Grinding Machine from Bhavya Machine Tools is ideal for sharpening and reconditioning a wide range of cutting tools such as milling cutters, drills, reamers, taps, and end mills. Built with high-quality components and advanced technology, it guarantees smooth performance, precise grinding, and long service life. The ergonomic design and adjustable settings allow operators to achieve perfect tool geometry with minimal effort.

As a manufacturer, exporter, and supplier, Bhavya Machine Tools caters to clients across India and international markets, offering competitive pricing, prompt delivery, and reliable after-sales support. Their machines are widely used in workshops, tool rooms, and production units for maintaining tool accuracy and improving machining efficiency.

With a strong commitment to innovation and quality, Bhavya Machine Tools continues to set industry benchmarks in tool grinding technology, making it a preferred choice among professionals worldwide.
