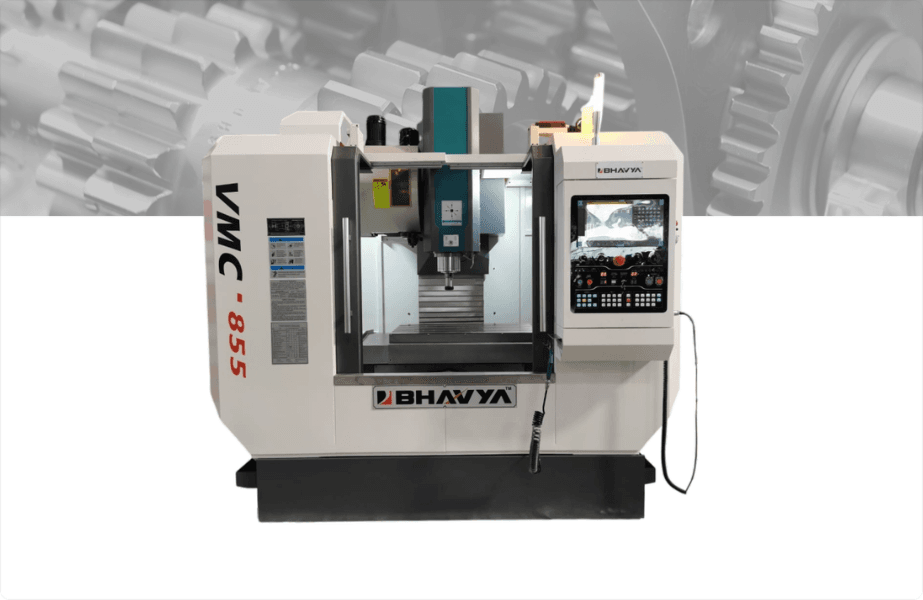

Vertical Machining Center

Vertical Machining Center
MILLING

Model No

  • VMC450
  • VMC540
  • VMC640
  • VMC650
  • VMC850
  • VMC855
  • VMC866
  • VMC1050
  • VMC1160
  • VMC1270
  • VMC1380
  • VMC1580

Technical Specifications

TECHNICAL PARAMETER UNIT VMC450 VMC540 VMC640 VMC650
X/Y/Z-Axis Travel mm 450/360/400 500/400/400 600/400/400 650/500/500
Distance From Spindle Nose To Table mm 100-500 120-520 120-520 120-620
Distance From Spindle Center To Column Guideway mm 320 390 450 550
Spindle Motor Power kw 3.7/5.5 3.7/5.5 5.5/7.5 5.5/7.5
Spindle Speed rpm 10000 10000 10000 10000
Spindle Taper BT40 (Φ120) BT40 (Φ120) BT40 (Φ120) BT40 (Φ120)
Positioning Accuracy mm/300mm ±0.003 ±0.003 ±0.003 ±0.003
Repeatability Accuracy mm/300mm ±0.0015 ±0.0015 ±0.0015 ±0.0015
Working Table Size mm 900×400 600×400 700×400 800×500
Max. Working Table Load Capacity kg 250 350 350 500
T-Slot Qty-Width-Distance mm 4-14-100 4-14-90 4-14-100 5-18-100
X/Y/Z-Axis Rapid Feed Speed m/min 15/15/15 15/15/15 24/24/24 36/36/36
Feed Speed mm/min 1-10000 1-10000 1-10000 1-10000
Dia. Of X/Y/Z-Axis Ball Screw mm Φ32 Φ32 Φ32 Φ40
X/Y/Z Axis Servo Motor Power kw 1.0/1.0/1.5 1.5/1.5/2.0 2.0/2.0/3.0 2.0/2.0/3.0
Linear Guideway Width And Type / Qty / Block Qty X-Axis 25 Ball / 2 / 4 25 Ball / 2 / 4 30 Ball / 2 / 4 35 Ball / 2 / 4
Y-Axis 30 Ball / 2 / 4 30 Ball / 2 / 4 30 Ball / 2 / 4 35 Ball / 2 / 4
Z-Axis 30 Ball / 2 / 4 30 Ball / 2 / 4 30 Ball / 2 / 4 35 Ball / 2 / 4
Controller FANUC / Siemens / GSK / Mitsubishi
Tool Magazine type umbrella 16 tools umbrella 16 tools Arm 16 tools Arm 24 tools
Max. Power Consumption kva 9 11 11 11
Net Weight (Approx) ton 1.9 2.0 2.9 3.7
Overall Dimensions mm 2120×2010×2300 2200×2050×2350 2230×2240×2450 2230×2240×2450
TECHNICAL PARAMETER UNIT VMC850 VMC855 VMC866 VMC1050
X/Y/Z-Axis Travel mm 800/500/500 850/550/550 850/600/600 1000/500/550
Distance From Spindle Nose To Table mm 120-620 120-670 120-720 120-670
Distance From Spindle Center To Column Guideway mm 550 595 650 500
Spindle Motor Power kw 7.5/11 7.5/11 7.5/11 7.5/11
Spindle Speed rpm 10000 10000 10000 10000
Spindle Taper BT40 (Φ150) BT40 (Φ150) BT40 (Φ150) BT40 (Φ150)
Positioning Accuracy mm/300mm ±0.003 ±0.003 ±0.003 ±0.003
Repeatability Accuracy mm/300mm ±0.0015 ±0.0015 ±0.0015 ±0.0015
Working Table Size mm 1000×500 1000×550 1000×550 1200×500
Max. Working Table Load Capacity kg 600 650 650 650
T-Slot Qty-Width-Distance mm 5-18-100 5-18-100 5-18-100 5-18-100
X/Y/Z-Axis Rapid Feed Speed m/min 48/48/48 36/36/36 36/36/36 48/48/48
Feed Speed mm/min 1-10000 1-10000 1-10000 1-10000
Dia. Of X/Y/Z-Axis Ball Screw mm Φ40 Φ40 Φ40 Φ40
X/Y/Z Axis Servo Motor Power kw 2.0/2.0/3.0 2.0/2.0/3.0 2.0/2.0/3.0 2.0/2.0/3.0
Linear Guideway Width And Type / Qty / Block Qty X-Axis 35 Ball / 2 / 4 35 Ball / 2 / 4 45 Ball / 2 / 4 35 Ball / 2 / 6
Y-Axis 35 Ball / 2 / 4 45 Ball / 2 / 4 45 Ball / 2 / 4 35 Ball / 2 / 4
Z-Axis 35 Ball / 2 / 4 45 Ball / 2 / 6 45 Ball / 2 / 6 35 Ball / 2 / 6
Controller FANUC / Siemens / GSK / Mitsubishi
Tool Magazine type Arm 24 Tools Arm 24 Tools Arm 24 Tools Arm 24 Tools
Max. Power Consumption kva 15 18 18 15
Net Weight (Approx) ton 4.8 5.5 6 5
Overall Dimensions mm 2570×2380×2450 2560×2430×2450 3050×2510×2650 2900×2240×2350
TECHNICAL PARAMETER UNIT VMC1160 VMC1270 VMC1380 VMC1580
X/Y/Z-Axis Travel mm 1100/600/600 1200/700/600 1300/800/800 1500/800/800
Distance From Spindle Nose To Table mm 120-720 120-720 150-850 150-850
Distance From Spindle Center To Column Guideway mm 650 700 855 855
Spindle Motor Power kw 11/15 11/15 15/18.5 15/18.5
Spindle Speed rpm 10000 8000 6000 6000
Spindle Taper BT40 (Φ150) BT40 (Φ150) BT50 (Φ190) BT50 (Φ190)
Positioning Accuracy mm/300mm ±0.003 ±0.003 ±0.003 ±0.003
Repeatability Accuracy mm/300mm ±0.0015 ±0.0015 ±0.0015 ±0.0015
Working Table Size mm 1200×600 1400×700 1400×800 1700×800
Max. Working Table Load Capacity kg 900 1000 1000 1000
T-Slot Qty-Width-Distance mm 5-18-100 5-18-140 7-18-110 7-22-110
X/Y/Z-Axis Rapid Feed Speed m/min 36/36/36 36/36/36 20/20/20 20/20/20
Feed Speed mm/min 1-10000 1-10000 1-10000 1-10000
Dia. Of X/Y/Z-Axis Ball Screw mm Φ40 Φ40 Φ50 Φ50
X/Y/Z Axis Servo Motor Power kw 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0
Linear Guideway Width And Type / Qty / Block Qty X-Axis 45 Ball / 2 / 6 45 Ball / 2 / 6 55 Ball / 2 / 6 55 Ball / 2 / 6
Y-Axis 45 Ball / 2 / 4 55 Ball / 2 / 4 45 Ball / 4 / 8 45 Ball / 4 / 8
Z-Axis 45 Ball / 2 / 6 45 Ball / 2 / 6 55 Ball / 2 / 6 55 Ball / 2 / 6
Controller FANUC / Siemens / GSK / Mitsubishi
Tool Magazine type Arm 24 Tools Arm 24 Tools Arm 24 Tools Arm 24 Tools
Max. Power Consumption kva 25 25 50 50
Net Weight (Approx) ton 6.5 9 12 13
Overall Dimensions mm 3200×2550×2600 3350×2809×3000 3700×2950×3300 4000×3000×3300

*Specifications are subject to changed without prior notice.
