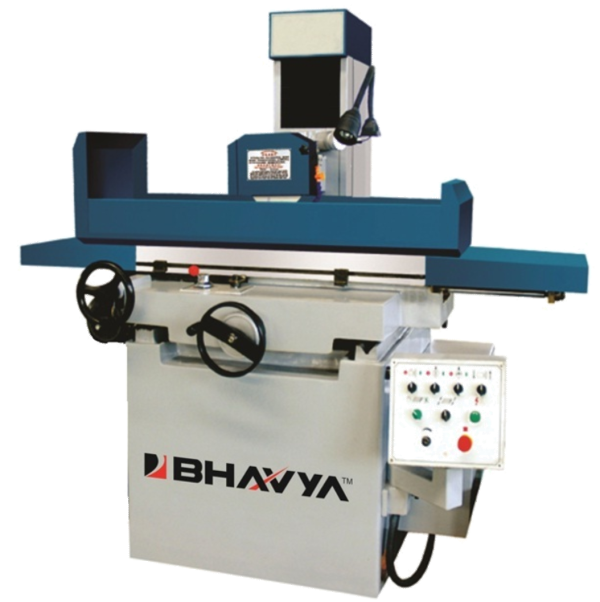

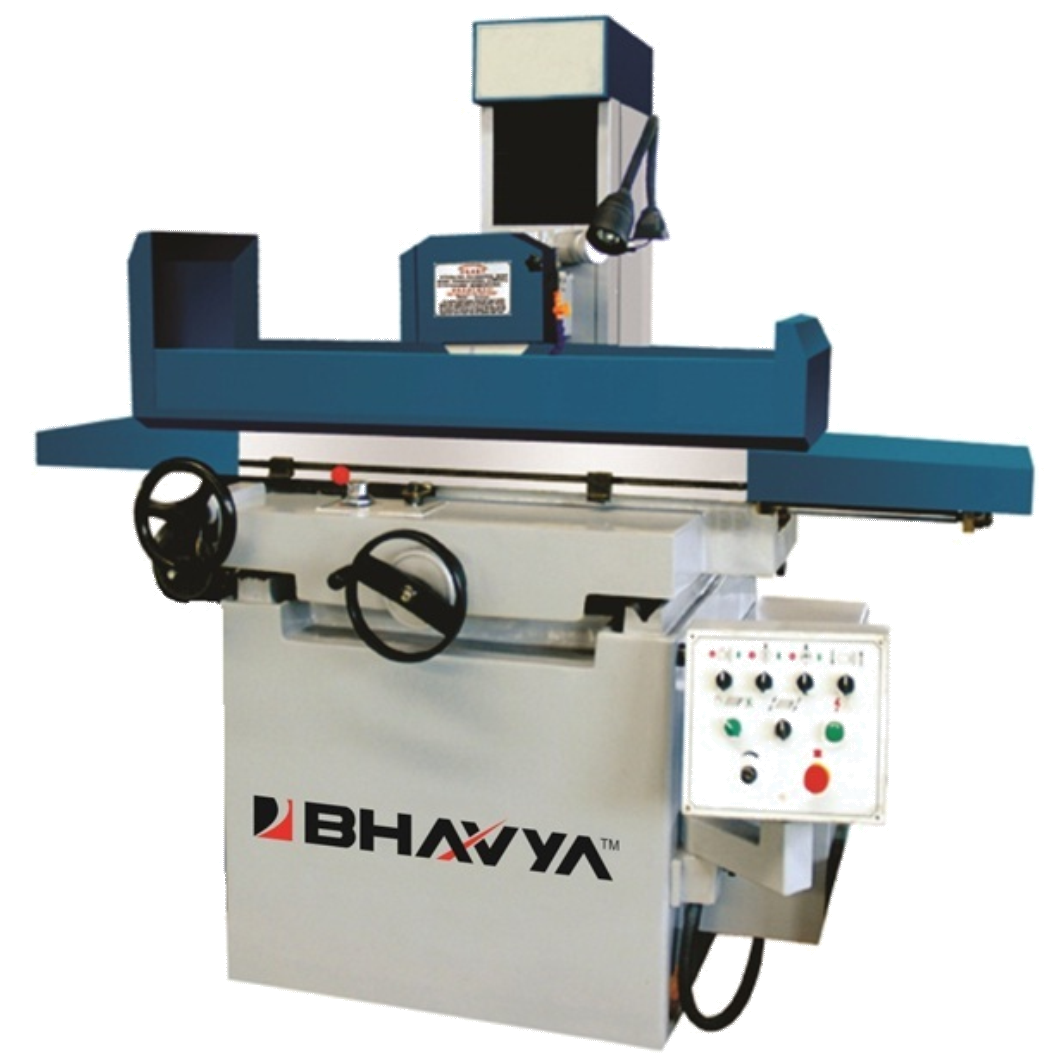

Manual Surface Grinding Machine : HSG6030

425,000.00

  • Grinding Capacity.: 600x300x300mm
  • T-Slot: 14×1 mm x no
  • Spindle Speed :2850 r/min
SKU: HSG6030 Category:

Description

Specification

Model No M3060A
Grinding Capacity: LX W XH 600x300x300mm
Longitudinal table travel 620mm
Cross table travel 325mm
Max. Distance from the spindle centre
to the worktable surface 400mm
Safety load of bench (in max) 150 Kg
Table size 600 x 300mm
T-slot 14×1 mm x no.
Bench speed 3-23 m/min
Cross auto feed 0.02mm / Div
Cross rapid feed 0.6 -10mm
Cross handwheel
Grinding Wheel size( DXWXd) 200x16x32mm
Spindle Speed 2850 r/min
Max. Movement of Vertical mechanism 400mm
Vertical fine adjustment revolution 0.15mm
Vertical per fine adjustment graduation 0.002mm
Spindle moter 1.5 Kw
Overall dimensions: (LXWXH) 1870x1200x1840
