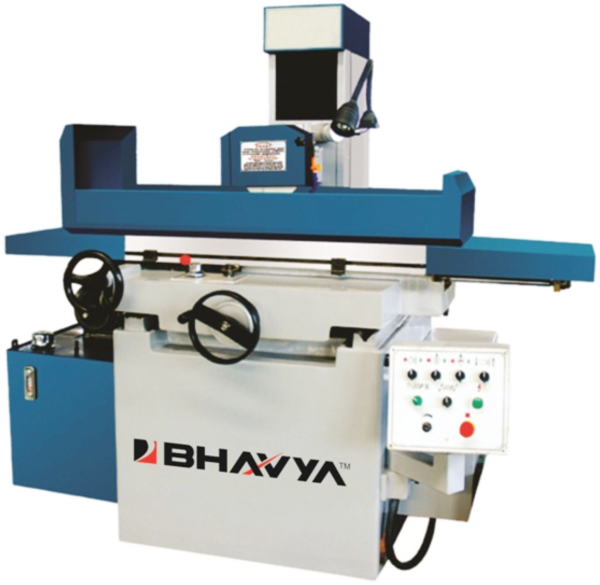

Manual Surface Grinding Machine : HSG6030A+

917,500.00

  • Grinding Capacity.: 600x300x300mm
  • T-Slot: 14×1 mm x no
  • Spindle Speed :2850 r/min

Quantity :

Share on:

SKU :- HSG6030A+ Category :-

Specification

Specification

Model No M3060A +
Grinding Capacity: LXWXH 600x 300x300mm
Longitudinal table travel 620mm
Cross table travel 325mm
Max. Distance from the spindle centre
to the worktable surface 400mm
Safety load of bench (in max) 150 Kg
Table size 600 x 300mm
T-slot 14 X 1 mm x no.
Bench speed 3-23 m/min
Cross auto feed 0.02mm/div
Cross rapid feed 0.6-10mm
Cross handwheel
Grinding Wheel size( DXWXd) 200x16x32mm
Spindle Speed 2850 r/min
Max. Movement of Vertical mechanism 400mm
Vertical fine adjustment revolution 0.15mm
Vertical per fine adjustment graduation 0.002mm
Spindle motor 1.5 Kw
Overall dimensions: (LXWXH) 1870x1200x1840 mm
