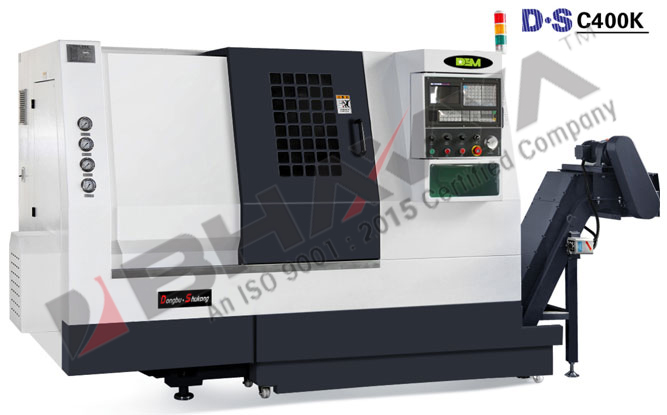

Slant Bed Turning Center (C400K / C400K-L)

  • 45 Degree slant bed structure, resin sand casting bed highly increase the rigidity & long term accuracy.
  • Automatic hydraulic tail stock, Its high accurate, high effective and stable with hydraulic system. Simple and rigorous structure highly increase the durability and safety in production. It is specially designed for this machine.
  • Integral sealed protection, the sealed design provides excellent water resistant and only make low sound when operating. Its more durable and protects all electric device from water, oil and all metal.
  • Integral motor seat and guide way design highly increase the accuracy that may effected by installation.
  • Streamline structure chip conveyer has beautiful appearance, its is high effective and conveys smoothly. The Overload protection ensures the stability and safety.
ModelsC400K/C400K-L
Maximum Swing Over BedØ 400mm
Maximum Swing Over SolidØ 250mm
Maximum Machining Length with Hydraulic Chuck430mm /1000mm
Spindle Taper HoleØ 62mm
Maximum Bar Diameter with Hydraulic Hollow ChunkØ 48mm
Maximum Bar Diameter with Hydraulic Solid ChunkNone
Spindle Head TypeA2-6
Spindle Speed Range50-3000rpm
Spindle Shift ModeServo
Spindle Rated Torque72Nm
Main Moto Power11Kw
Spindle Moto Maximum Speed Range(30 Min)15Kw
Chunk TypeHydraulic Solid (AUTOGRIP-Taiwan)
Chunk SizeØ 200mm
Rapid Traverse Speed on X Axis16m/min
Rapid Traverse Speed on Z Axis20m/min
Servo Motor Torque on X Axis7.5Nm
Servo Motor Torque on Z Axis7.5Nm
X Axis Travel220mm
Z Axis Travel490mm/1100mm
Guide Way TypeLinear Guide Way (PMI/HIWIN Taiwan)
Turret Type

8 Station Tool Turret (PRAGATI)

(Optional-12 Station Tool Turret)

Tool Change Time4570.24-Sec
Turning Tool / Boring Bar Size25mm x 25mm / 040mm
Tail Stock TypeHydraulic
Tail Stock Diameter/Travel088mm/85mm
Tail Stock Sleeve TaperMT5
Chips Conveyor (Optional)Hinge Belt
Weight2800KG/3500KG
