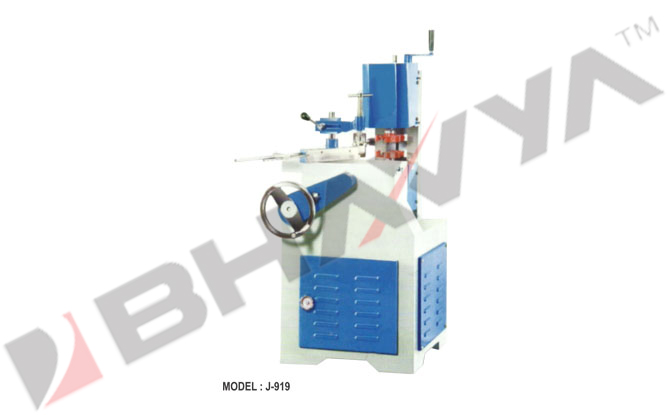

Wood Working Machine (Mortiser – Tenoning Machine)

Model : J-919
TenomacPrimaMAX
Model NoJ-1919J-919
 mm/inchmm/inch
Table size740x470/29"x18'/2"535x203/21"x8"
Table movement800/32"200/8"
Max length of tenon150/6"150/6"
Max. width of workpiece200/8"-
Top cutter horizontal adjust25 / 1"12.5 / 54"
Max. circular saw dia.254 / 10"-
Max. depth of cut circular saw50/2"-
Size of dust collection port-Dia100/4"-
2 Nos. Ele. Motor - Tenoning (HP/RPM)2/28002/2800
Ele. Motor - circular saw (HP/RPM)1 / 2800-

Standard Accessories : J-1919

  • 2 no electric motor of 2 hp / 2800 rpm (3 phase)
  • 1 hp / 2800 rpm (3-phase)
  • 2nos. R/f switch
  • R/f switch
  • 2 nos. carbide cutter blocks
  • mitre gauge
  • saw guard
  • Toolkit & m/c manual

Standard Accessories : J-919

  • 2 no electric motor of 2 hp / 2800 rpm (3 phase)
  • 2 nos. carbide cutter blocks
  • Mitre gauge
  • Toolkit & m/c manual
