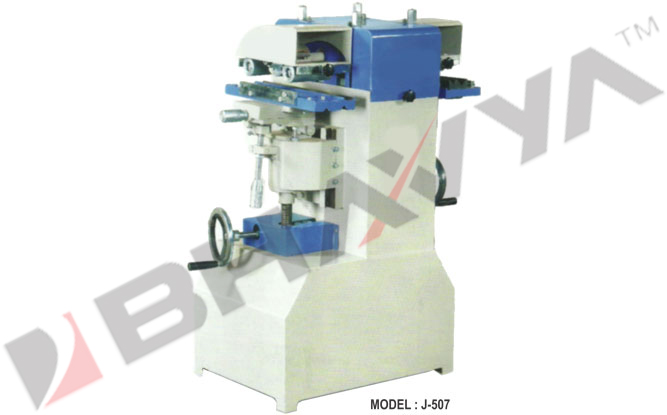

Wood Working Machine (Spindle Moulder J-507)

Model : J-507

Technical Specifications

Accesories

Photos Gallery

	Double Auto Mould	Auto Mould
Model No	Main Side J-507	2 nd Side	J-505
	mm/inch	mm/inch	mm/inch
Work table size	455x150 /18"x6"	455 x 150/18" x 6"	455x150/18"x6"
Up/down movement of table	100/4"	63/2 1/2"	100/4"
Longitudinal movement of table	50/2"	25/1"	50/2"
Table tilt-degree	15	-	15
Feeding speed (feet per minute)	24	24	24
Moulding block speed (rpm)	4000	4000	4000
Max.moulding block width	114/4 1/2"	75/3"	114/4 1/2"
Moulding block diameter	95/3 3/4"	95/3 3/4"	95/3 3/4"
Power required hp/rpm	3/1440	-	3/1440
